SKU: FYK40TF-SKF

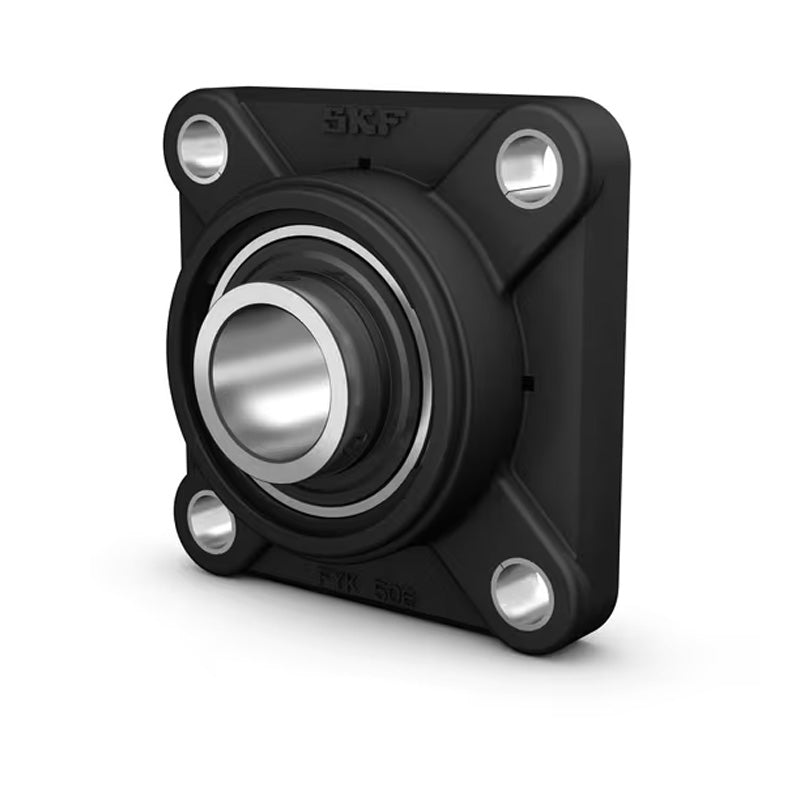

SKF FYK40TF Composite Flanged Unit with a Square Housing with Grub Screw 40mm Insert
- Regular price
- $96.15 ex VAT
- Sale price
- $96.15
- Regular price
-
In stock
Quantity Price Breaks
10+
$85.57
19+
$80.77
29+
$79.80
39+
$78.84
49+
$77.88
74+
$76.92
99+
$72.11
199+
$71.15
249+
$70.19
499+
$69.23
999+
$67.31
SKU:
FYK40TF-SKF
SKF FYK40TF Composite Flanged Unit with a Square Housing with Grub Screw 40mm Insert
- Regular price
- $96.15 ex VAT
- Sale price
- $96.15
- Regular price
-
Description
| SKF Square Flanged Y-TECH Units with Grub Screws: These units have housings made of composite material. They were developed for bearing arrangements that must operate reliably in difficult environments for extended periods of time without maintenance. This unit has a square flange and four bolt holes. The FYK series units are fitted with Y-bearings in the YAR 2-2F series where the unit designation has the TF suffix, and YAR 2-2RF series where the unit designation has the TR suffix. |

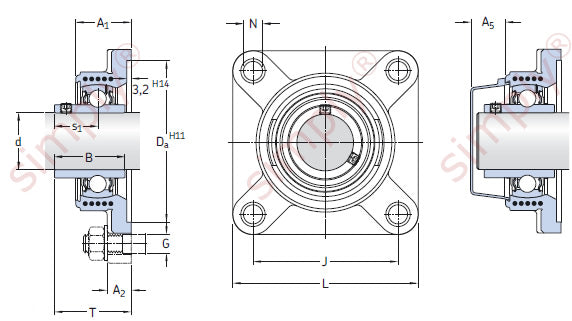

Technical
| d | = | 40mm |
| A1 | = | 39mm |
| A2 | = | 17mm |
| B | = | 49.2mm |
| Da | = | 115.9mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14.5mm |
| G | = | 12mm |
| s1 | = | 30.2mm |
| T | = | 54.2mm |
| Static load Cr | = | 19 kN |
| Dynamic load Cor | = | 30.7 kN |
| Fatigue load limit Pu | = | 0.8 kN |
| Limiting speed | = | 4800 rpm |
| A5 | = | 23.5mm |
| Weight | = | 0.87 kg |
| Compatible end cover closed | = | ECY208 |
