SKU: FYJ55KF-SKF

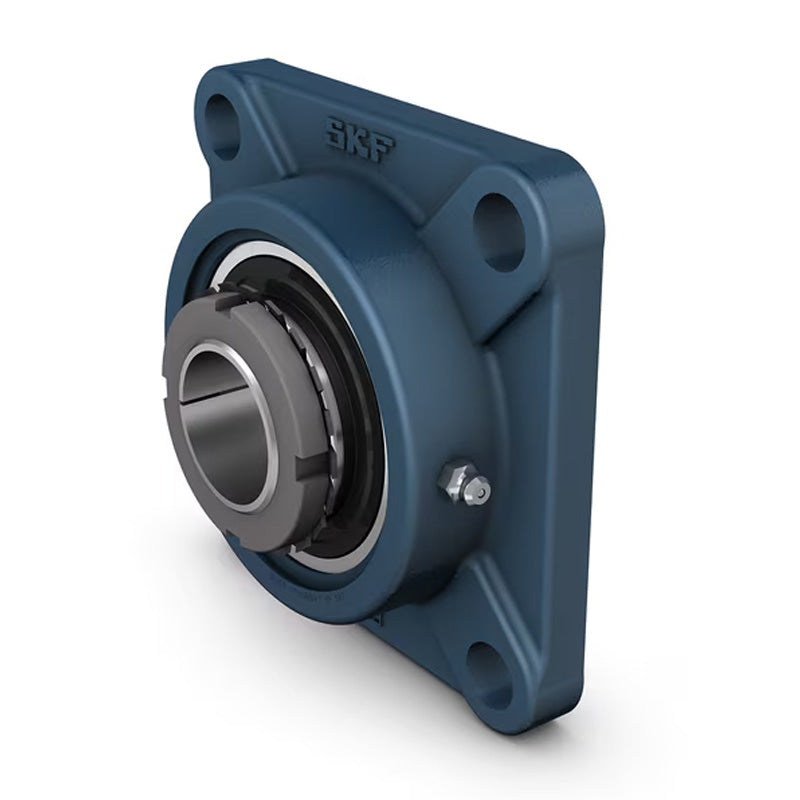

SKF FYJ55KF Flanged Unit with a Square Cast Housing with 50mm Insert
- Regular price
- $172.79 ex VAT
- Sale price
- $172.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$153.78
19+
$145.14
29+
$143.42
39+
$141.69
49+
$139.96
74+
$138.23
99+
$129.59
199+
$127.86
249+
$126.14
499+
$124.41
999+
$120.95
SKU:
FYJ55KF-SKF
SKF FYJ55KF Flanged Unit with a Square Cast Housing with 50mm Insert
- Regular price
- $172.79 ex VAT
- Sale price
- $172.79
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 50mm |
| A1 | = | 43mm |
| A2 | = | 17mm |
| B1 | = | 59mm |
| Da | = | 150.8mm |
| J | = | 130mm |
| L | = | 162mm |
| N | = | 19mm |
| G | = | 16mm |
| s1 | = | 32.5mm |
| T | = | 57.5mm |
| Static load Cr | = | 29 kN |
| Dynamic load Cor | = | 43.6 kN |
| Fatigue load limit Pu | = | 1.25 kN |
| Limiting speed | = | 3600 rpm |
| Weight | = | 3.6 kg |
