SKU: FYJ518-SKF

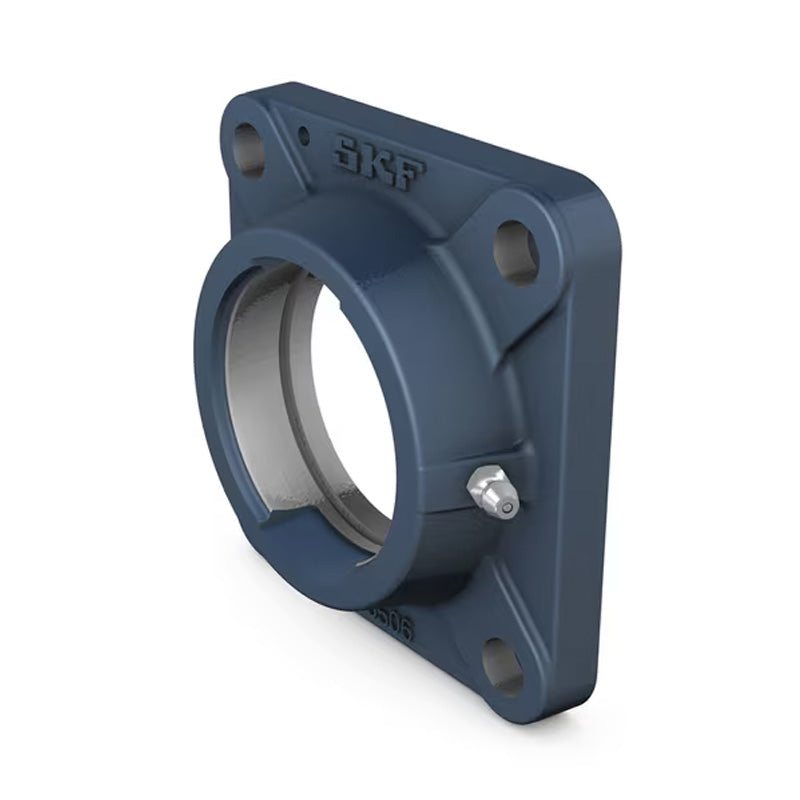

SKF FYJ518 Four Bolt Square Housing Only
- Regular price
- $188.13 ex VAT
- Sale price
- $188.13
- Regular price
-
In stock
Quantity Price Breaks
10+
$167.44
19+
$158.03
29+
$156.15
39+
$154.27
49+
$152.39
74+
$150.50
99+
$141.10
199+
$139.22
249+
$137.33
499+
$135.45
999+
$131.69
SKU:
FYJ518-SKF
SKF FYJ518 Four Bolt Square Housing Only
- Regular price
- $188.13 ex VAT
- Sale price
- $188.13
- Regular price
-
Description
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads.
Benefits: Grease fitting allows re-lubrication
Note: This Housing unit does not inlcude an insert

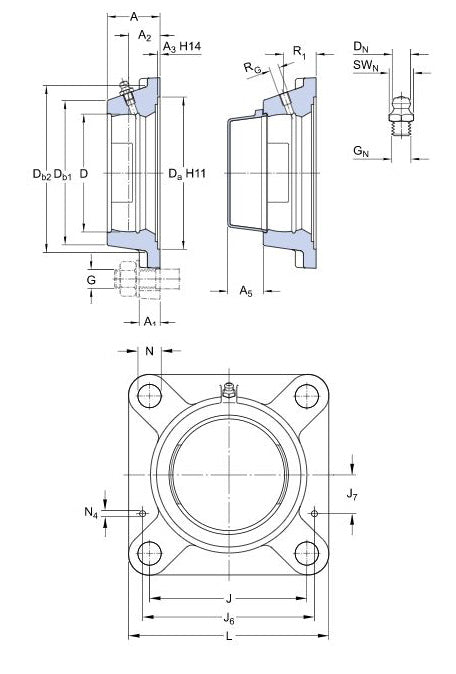

Technical
| Da | = | 160mm |
| Db1 | = | 187mm |
| Db2 | = | 201mm |
| A | = | 63.5mm |
| A1 | = | 23mm |
| A2 | = | 40 mm |
| A3 | = | 3.2mm |
| J | = | 187mm |
| L | = | 235mm |
| N | = | 23mm |
| RG | = | 1/4-28UNF |
| R1 | = | 40mm |
| DN | = | 6.5mm |
| SWN | = | 7mm |
| GN | = | 1/4-28 SAE-LT |
| J6 | = | 207mm |
| J7 | = | 52.5mm |
| N4 | = | 4mm |
| G | = | 20mm |
| G | = | 0.75in |
| Weight | = | 6.5kg |
