SKU: FYJ50KF-SKF

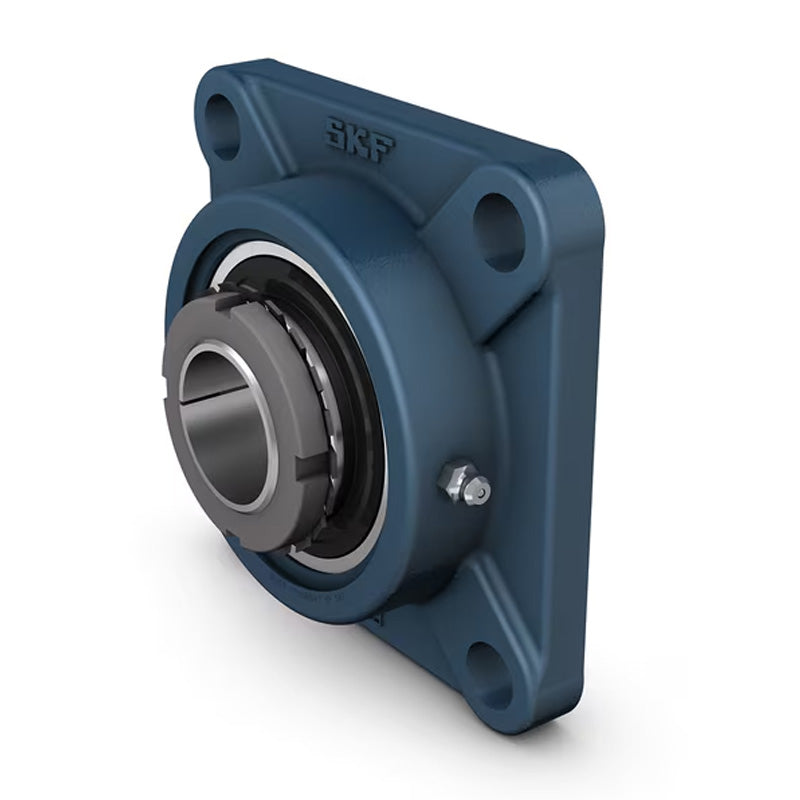

SKF FYJ50KF Flanged Unit with a Square Cast Housing with 45mm Insert
- Regular price
- $143.00 ex VAT
- Sale price
- $143.00
- Regular price
-
In stock
Quantity Price Breaks
10+
$127.27
19+
$120.12
29+
$118.69
39+
$117.26
49+
$115.83
74+
$114.40
99+
$107.25
199+
$105.82
249+
$104.39
499+
$102.96
999+
$100.10
SKU:
FYJ50KF-SKF
SKF FYJ50KF Flanged Unit with a Square Cast Housing with 45mm Insert
- Regular price
- $143.00 ex VAT
- Sale price
- $143.00
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 45mm |
| A1 | = | 40mm |
| A2 | = | 15mm |
| B1 | = | 55mm |
| Da | = | 125.4mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 16mm |
| G | = | 14mm |
| s1 | = | 30.5mm |
| T | = | 52.5mm |
| Static load Cr | = | 23.2 kN |
| Dynamic load Cor | = | 35.1 kN |
| Fatigue load limit Pu | = | 0.98 kN |
| Limiting speed | = | 4000 rpm |
| Weight | = | 2.8 kg |
