SKU: FYJ45KF-SKF

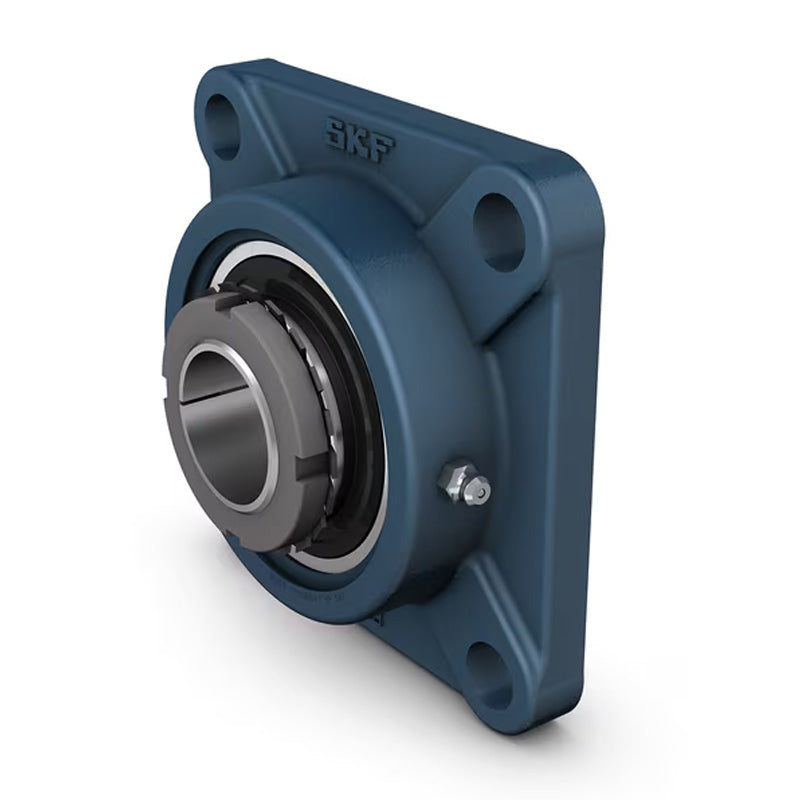

SKF FYJ45KF Flanged Unit with a Square Cast Housing with 40mm Insert
- Regular price
- $109.44 ex VAT
- Sale price
- $109.44
- Regular price
-
In stock
Quantity Price Breaks
10+
$97.40
19+
$91.93
29+
$90.84
39+
$89.74
49+
$88.65
74+
$87.55
99+
$82.08
199+
$80.99
249+
$79.89
499+
$78.80
999+
$76.61
SKU:
FYJ45KF-SKF
SKF FYJ45KF Flanged Unit with a Square Cast Housing with 40mm Insert
- Regular price
- $109.44 ex VAT
- Sale price
- $109.44
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 40mm |
| A1 | = | 38mm |
| A2 | = | 16mm |
| B1 | = | 50mm |
| Da | = | 119.1mm |
| J | = | 105mm |
| L | = | 137mm |
| N | = | 16mm |
| G | = | 14mm |
| s1 | = | 28.5mm |
| T | = | 50.5mm |
| Static load Cr | = | 21.6 kN |
| Dynamic load Cor | = | 33.2 kN |
| Fatigue load limit Pu | = | 0.915 kN |
| Limiting speed | = | 4300 rpm |
| Weight | = | 2.1 kg |
