SKU: FYJ40KF-SKF

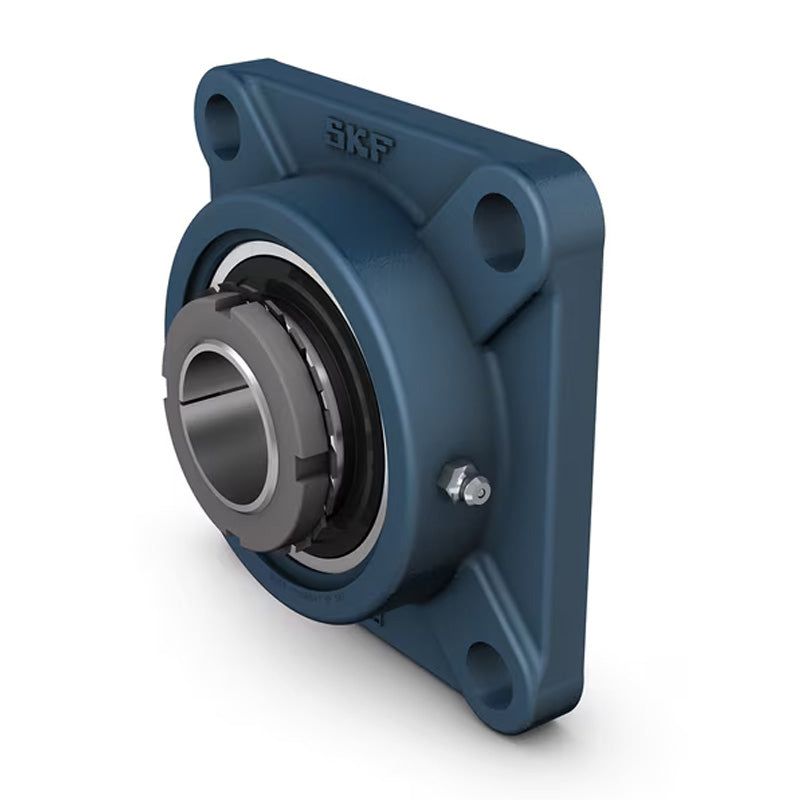

SKF FYJ40KF Flanged Unit with a Square Cast Housing with 35mm Insert
- Regular price
- $107.17 ex VAT
- Sale price
- $107.17
- Regular price
-
In stock
Quantity Price Breaks
10+
$95.38
19+
$90.02
29+
$88.95
39+
$87.88
49+
$86.81
74+
$85.74
99+
$80.38
199+
$79.31
249+
$78.23
499+
$77.16
999+
$75.02
SKU:
FYJ40KF-SKF
SKF FYJ40KF Flanged Unit with a Square Cast Housing with 35mm Insert
- Regular price
- $107.17 ex VAT
- Sale price
- $107.17
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 35mm |
| A1 | = | 36mm |
| A2 | = | 14mm |
| B1 | = | 46mm |
| Da | = | 115.9mm |
| J | = | 102mm |
| L | = | 130mm |
| N | = | 16mm |
| G | = | 14mm |
| s1 | = | 27mm |
| T | = | 48mm |
| Static load Cr | = | 19 kN |
| Dynamic load Cor | = | 30.7 kN |
| Fatigue load limit Pu | = | 0.8 kN |
| Limiting speed | = | 4800 rpm |
| Weight | = | 1.75 kg |
