SKU: FYJ25KF-SKF

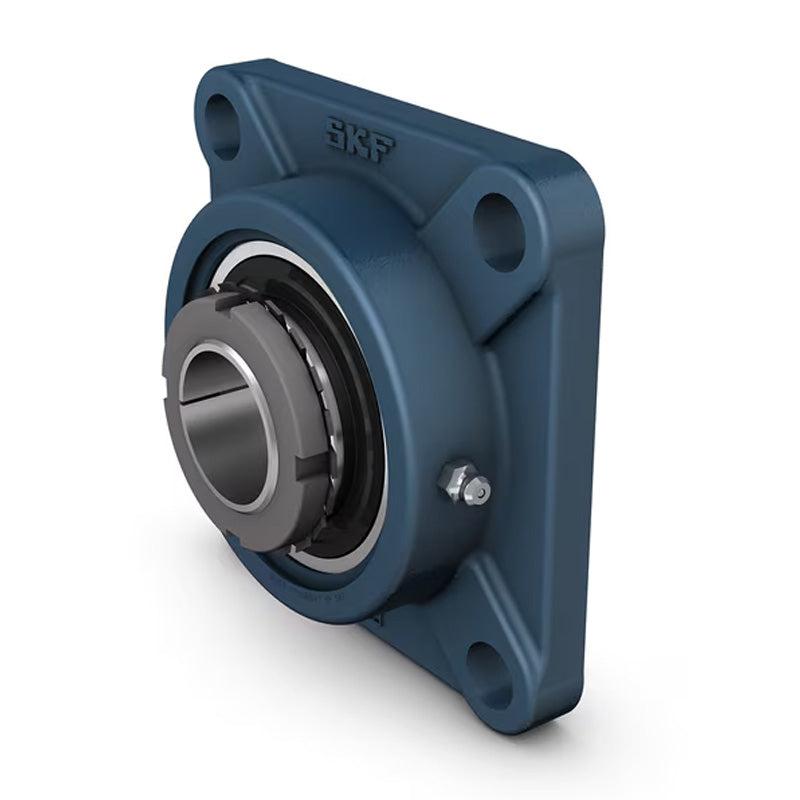

SKF FYJ25KF Flanged Unit with a Square Cast Housing with 20mm Insert
- Regular price
- $65.97 ex VAT
- Sale price
- $65.97
- Regular price
-
In stock
Quantity Price Breaks
10+
$58.71
19+
$55.41
29+
$54.76
39+
$54.10
49+
$53.44
74+
$52.78
99+
$49.48
199+
$48.82
249+
$48.16
499+
$47.50
999+
$46.18
SKU:
FYJ25KF-SKF
SKF FYJ25KF Flanged Unit with a Square Cast Housing with 20mm Insert
- Regular price
- $65.97 ex VAT
- Sale price
- $65.97
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |

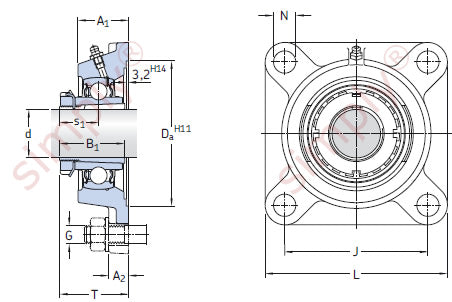

Technical
| d | = | 20mm |
| A1 | = | 27mm |
| A2 | = | 12mm |
| B1 | = | 35mm |
| Da | = | 74.6mm |
| J | = | 70mm |
| L | = | 95mm |
| N | = | 12mm |
| G | = | 10mm |
| s1 | = | 20mm |
| T | = | 36mm |
| Static load Cr | = | 7.8 kN |
| Dynamic load Cor | = | 14 kN |
| Fatigue load limit Pu | = | 0.335 kN |
| Limiting speed | = | 7000 rpm |
| Weight | = | 0.73 kg |
