SKU: FY55FM-SKF

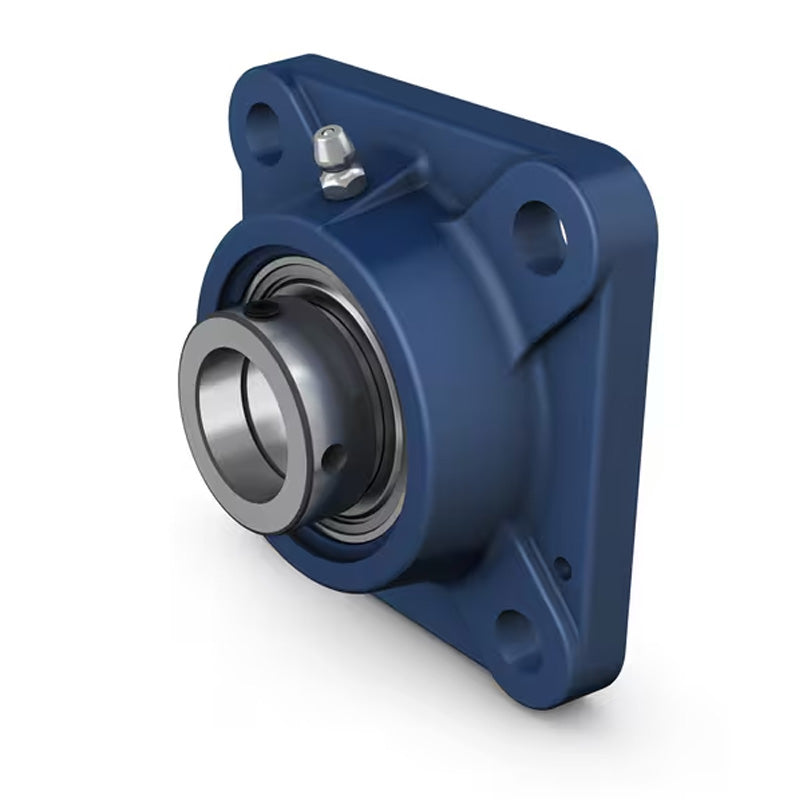

SKF FY55FM Square Cast Housing with Eccentric Locking Collar 55mm Insert
- Regular price
- $172.91 ex VAT
- Sale price
- $172.91
- Regular price
-
In stock
Quantity Price Breaks
10+
$153.89
19+
$145.24
29+
$143.52
39+
$141.79
49+
$140.06
74+
$138.33
99+
$129.68
199+
$127.95
249+
$126.22
499+
$124.50
999+
$121.04
SKU:
FY55FM-SKF
SKF FY55FM Square Cast Housing with Eccentric Locking Collar 55mm Insert
- Regular price
- $172.91 ex VAT
- Sale price
- $172.91
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 55mm |
| A1 | = | 47.5mm |
| A2 | = | 16mm |
| B1 | = | 48.4mm |
| Da | = | 150.8mm |
| J | = | 130mm |
| L | = | 162mm |
| N | = | 18mm |
| G | = | 16mm |
| s1 | = | 36.4mm |
| T | = | 67.4mm |
| Static load Cr | = | 29 kN |
| Dynamic load Cor | = | 43.6 kN |
| Fatigue load limit Pu | = | 1.25 kN |
| Limiting speed | = | 3600 rpm |
| A5 | = | 34mm |
| Weight | = | 3.6 kg |
| Compatible end cover closed | = | ECY211 |
