SKU: FY40TR-SKF

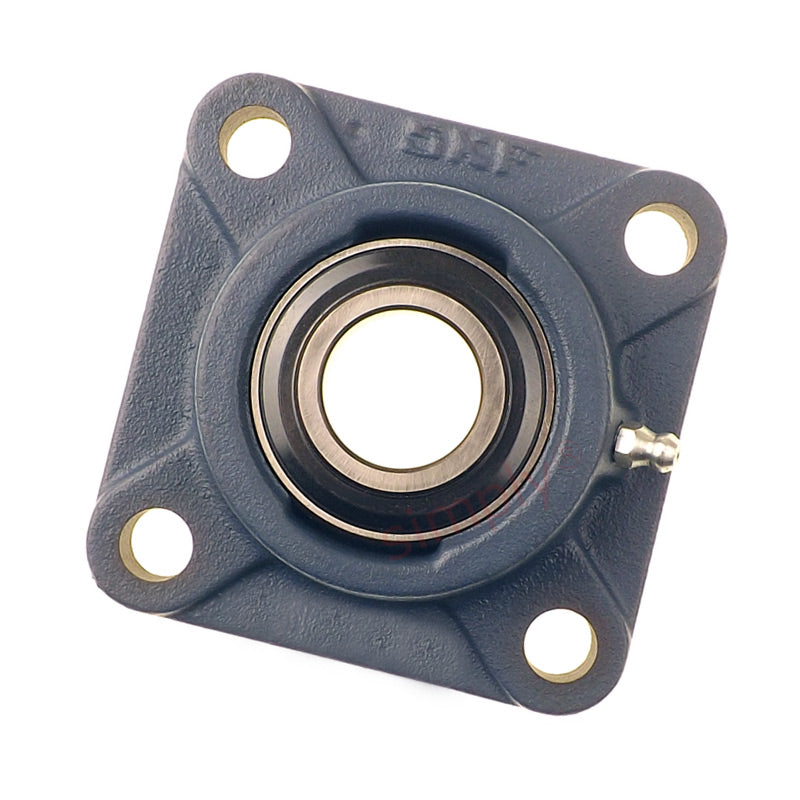

SKF FY40TR Square Cast Housing with Grub Screw 40mm Insert
- Regular price
- $111.66 ex VAT
- Sale price
- $111.66
- Regular price
-
In stock
Quantity Price Breaks
10+
$99.38
19+
$93.79
29+
$92.68
39+
$91.56
49+
$90.44
74+
$89.33
99+
$83.75
199+
$82.63
249+
$81.51
499+
$80.40
999+
$78.16
SKU:
FY40TR-SKF
SKF FY40TR Square Cast Housing with Grub Screw 40mm Insert
- Regular price
- $111.66 ex VAT
- Sale price
- $111.66
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

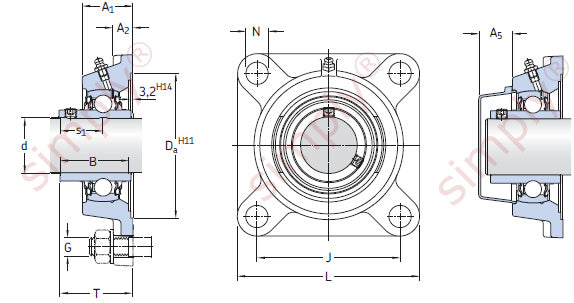

Technical
| d | = | 40mm |
| A1 | = | 38.5mm |
| A2 | = | 14mm |
| B | = | 49.2mm |
| Da | = | 115.9mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14mm |
| G | = | 12mm |
| s1 | = | 30.2mm |
| T | = | 54.2mm |
| Static load Cr | = | 19 kN |
| Dynamic load Cor | = | 30.7 kN |
| Fatigue load limit Pu | = | 0.8 kN |
| Limiting speed | = | 2800 rpm |
| A5 | = | 23.5mm |
| Weight | = | 1.9 kg |
| Compatible end cover closed | = | ECY208 |
