SKU: FY40FM-SKF

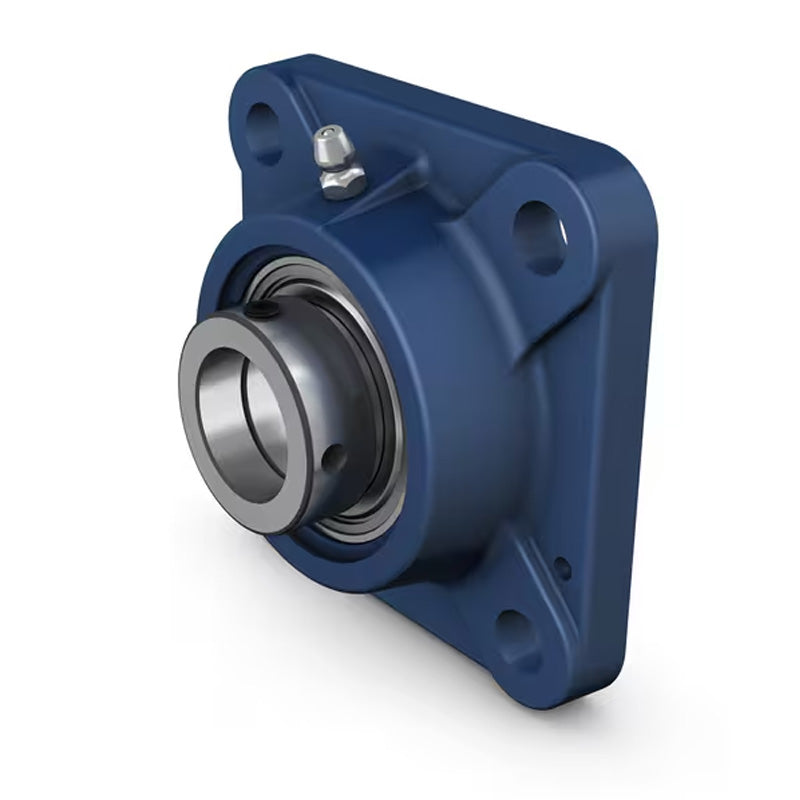

SKF FY40FM Square Cast Housing with Eccentric Locking Collar 40mm Insert
- Regular price
- $98.46 ex VAT
- Sale price
- $98.46
- Regular price
-
In stock
Quantity Price Breaks
10+
$87.63
19+
$82.71
29+
$81.72
39+
$80.74
49+
$79.75
74+
$78.77
99+
$73.85
199+
$72.86
249+
$71.88
499+
$70.89
999+
$68.92
SKU:
FY40FM-SKF
SKF FY40FM Square Cast Housing with Eccentric Locking Collar 40mm Insert
- Regular price
- $98.46 ex VAT
- Sale price
- $98.46
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

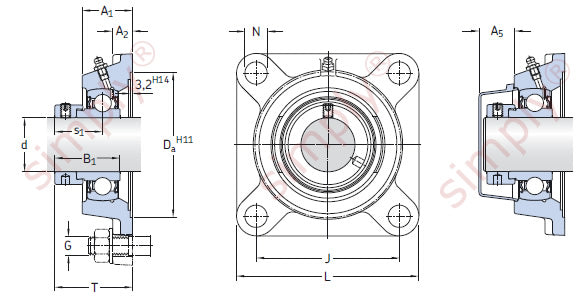

Technical
| d | = | 40mm |
| A1 | = | 38.5mm |
| A2 | = | 14mm |
| B1 | = | 43.7mm |
| Da | = | 115.9mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14mm |
| G | = | 12mm |
| s1 | = | 32.7mm |
| T | = | 56.7mm |
| Static load Cr | = | 19 kN |
| Dynamic load Cor | = | 30.7 kN |
| Fatigue load limit Pu | = | 0.8 kN |
| Limiting speed | = | 4300 rpm |
| A5 | = | 23.5mm |
| Weight | = | 1.95 kg |
| Compatible end cover closed | = | ECY208 |
