SKU: FY35FM-SKF

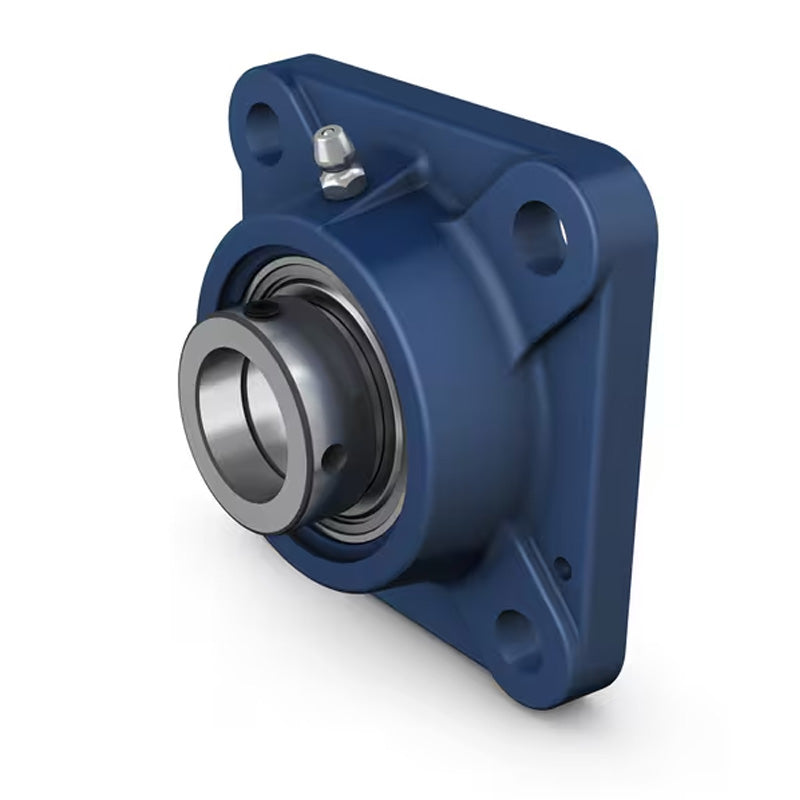

SKF FY35FM Square Cast Housing with Eccentric Locking Collar 35mm Insert
- Regular price
- $84.41 ex VAT
- Sale price
- $84.41
- Regular price
-
In stock
Quantity Price Breaks
10+
$75.12
19+
$70.90
29+
$70.06
39+
$69.22
49+
$68.37
74+
$67.53
99+
$63.31
199+
$62.46
249+
$61.62
499+
$60.78
999+
$59.09
SKU:
FY35FM-SKF
SKF FY35FM Square Cast Housing with Eccentric Locking Collar 35mm Insert
- Regular price
- $84.41 ex VAT
- Sale price
- $84.41
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 35mm |
| A1 | = | 34.5mm |
| A2 | = | 13mm |
| B1 | = | 38.9mm |
| Da | = | 106.4mm |
| J | = | 92mm |
| L | = | 118mm |
| N | = | 14mm |
| G | = | 12mm |
| s1 | = | 29.4mm |
| T | = | 50.4mm |
| Static load Cr | = | 15.3 kN |
| Dynamic load Cor | = | 25.5 kN |
| Fatigue load limit Pu | = | 0.655 kN |
| Limiting speed | = | 5300 rpm |
| A5 | = | 22mm |
| Weight | = | 1.5 kg |
| Compatible end cover closed | = | ECY207 |
