SKU: FY30FM-SKF

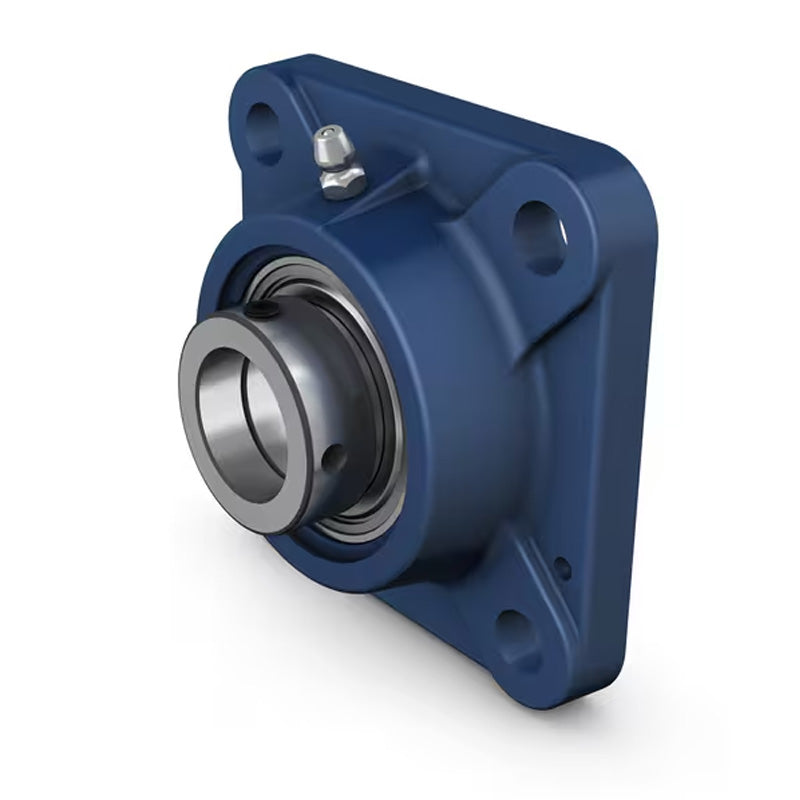

SKF FY30FM Square Cast Housing with Eccentric Locking Collar 30mm Insert
- Regular price
- $70.54 ex VAT
- Sale price
- $70.54
- Regular price
-
In stock
Quantity Price Breaks
10+
$62.78
19+
$59.25
29+
$58.55
39+
$57.84
49+
$57.14
74+
$56.43
99+
$52.91
199+
$52.20
249+
$51.49
499+
$50.79
999+
$49.38
SKU:
FY30FM-SKF
SKF FY30FM Square Cast Housing with Eccentric Locking Collar 30mm Insert
- Regular price
- $70.54 ex VAT
- Sale price
- $70.54
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

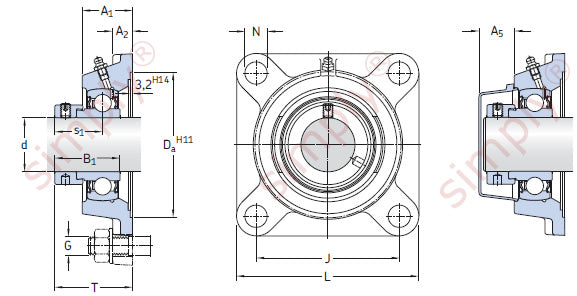

Technical
| d | = | 30mm |
| A1 | = | 32.5mm |
| A2 | = | 13mm |
| B1 | = | 35.7mm |
| Da | = | 93.7mm |
| J | = | 82.5mm |
| L | = | 108mm |
| N | = | 11.5mm |
| G | = | 10mm |
| s1 | = | 26.7mm |
| T | = | 46.7mm |
| Static load Cr | = | 11.2 kN |
| Dynamic load Cor | = | 19.5 kN |
| Fatigue load limit Pu | = | 0.475 kN |
| Limiting speed | = | 6300 rpm |
| A5 | = | 20mm |
| Weight | = | 1.1 kg |
| Compatible end cover closed | = | ECY206 |
