SKU: FY20FM-SKF

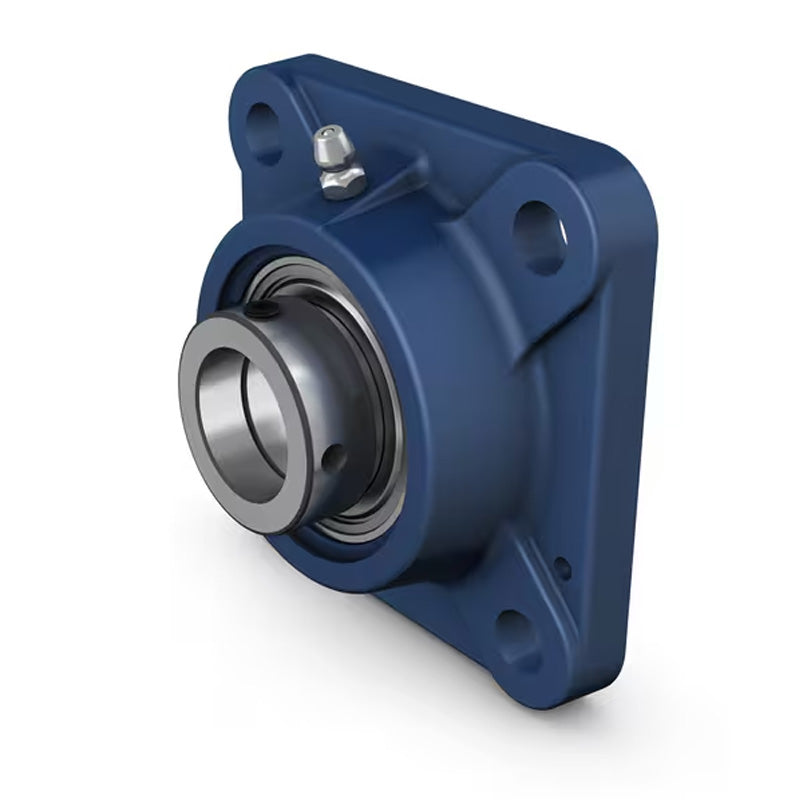

SKF FY20FM Square Cast Housing with Eccentric Locking Collar 20mm Insert
- Regular price
- $55.13 ex VAT
- Sale price
- $55.13
- Regular price
-
In stock
Quantity Price Breaks
10+
$49.07
19+
$46.31
29+
$45.76
39+
$45.21
49+
$44.66
74+
$44.10
99+
$41.35
199+
$40.80
249+
$40.24
499+
$39.69
999+
$38.59
SKU:
FY20FM-SKF
SKF FY20FM Square Cast Housing with Eccentric Locking Collar 20mm Insert
- Regular price
- $55.13 ex VAT
- Sale price
- $55.13
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 20mm |
| A1 | = | 29.5mm |
| A2 | = | 11mm |
| B1 | = | 31mm |
| Da | = | 68.3mm |
| J | = | 63.5mm |
| L | = | 86mm |
| N | = | 11.5mm |
| G | = | 10mm |
| s1 | = | 23.5mm |
| T | = | 42.5mm |
| Static load Cr | = | 6.55 kN |
| Dynamic load Cor | = | 12.7 kN |
| Fatigue load limit Pu | = | 0.28 kN |
| Limiting speed | = | 8500 rpm |
| A5 | = | 18.5mm |
| Weight | = | 0.62 kg |
| Compatible end cover closed | = | ECY204 |
