SKU: FY2.3/16WF-SKF
SKF FY2-3/16WF Square Cast Housing with Eccentric Collar 2-3/16 inch Insert
- Regular price
- $216.64 ex VAT
- Sale price
- $216.64
- Regular price
-
In stock
Quantity Price Breaks
10+
$192.81
19+
$181.98
29+
$179.81
39+
$177.64
49+
$175.48
74+
$173.31
99+
$162.48
199+
$160.31
249+
$158.15
499+
$155.98
999+
$151.65
SKU:
FY2.3/16WF-SKF
SKF FY2-3/16WF Square Cast Housing with Eccentric Collar 2-3/16 inch Insert
- Regular price
- $216.64 ex VAT
- Sale price
- $216.64
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |

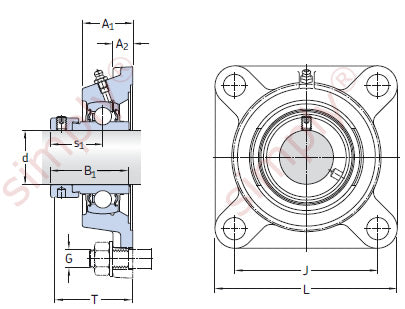

Technical
| d | = | 2-3/16 inch |
| A1 | = | 47.5mm |
| A2 | = | 16mm |
| B1 | = | 71.4mm |
| J | = | 130mm |
| L | = | 162mm |
| G | = | 16mm |
| s1 | = | 43.6mm |
| T | = | 74.6mm |
| Static load Cr | = | 29 kN |
| Dynamic load Cor | = | 43.6 kN |
| Fatigue load limit | = | 1.25 kN |
| Limiting speed | = | 3600 rpm |
| Weight | = | 3.85 kg |
| Housing | = | |
| Insert | = |
