SKU: FY17FM-SKF

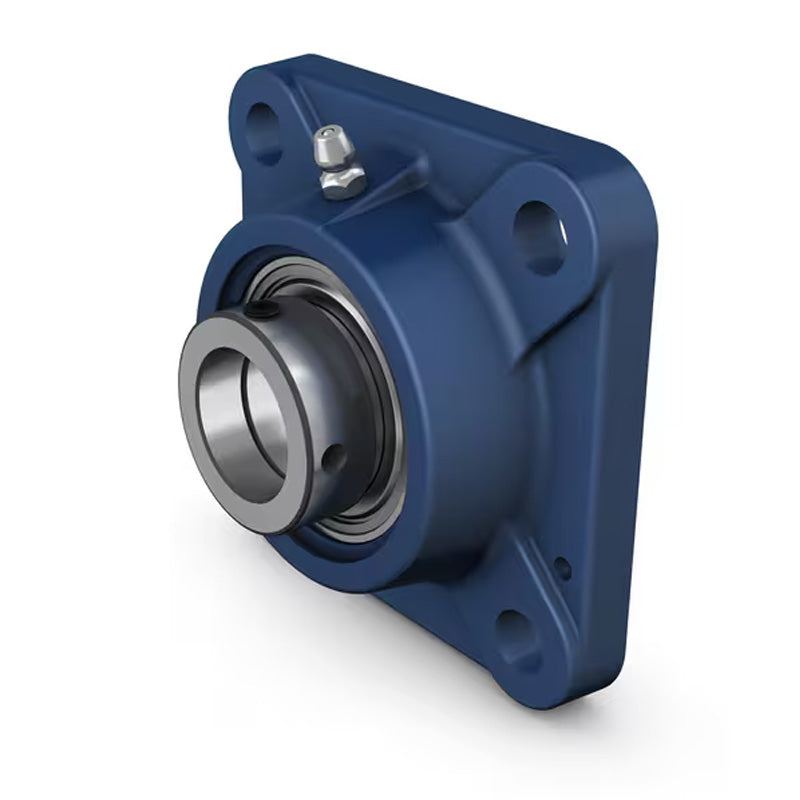

SKF FY17FM Square Cast Housing with Eccentric Locking Collar 17mm Insert
- Regular price
- $54.06 ex VAT
- Sale price
- $54.06
- Regular price
-
In stock
Quantity Price Breaks
10+
$48.11
19+
$45.41
29+
$44.87
39+
$44.33
49+
$43.79
74+
$43.25
99+
$40.55
199+
$40.00
249+
$39.46
499+
$38.92
999+
$37.84
SKU:
FY17FM-SKF
SKF FY17FM Square Cast Housing with Eccentric Locking Collar 17mm Insert
- Regular price
- $54.06 ex VAT
- Sale price
- $54.06
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 17mm |
| A1 | = | 26mm |
| A2 | = | 11mm |
| B1 | = | 28.6mm |
| Da | = | 55.6mm |
| J | = | 54mm |
| L | = | 76mm |
| N | = | 11.5mm |
| G | = | 10mm |
| s1 | = | 22.1mm |
| T | = | 39.1mm |
| Static load Cr | = | 4.75 kN |
| Dynamic load Cor | = | 9.56 kN |
| Fatigue load limit Pu | = | 0.2 kN |
| Limiting speed | = | 9500 rpm |
| Weight | = | 0.48 kg |
