SKU: FY15FM-SKF

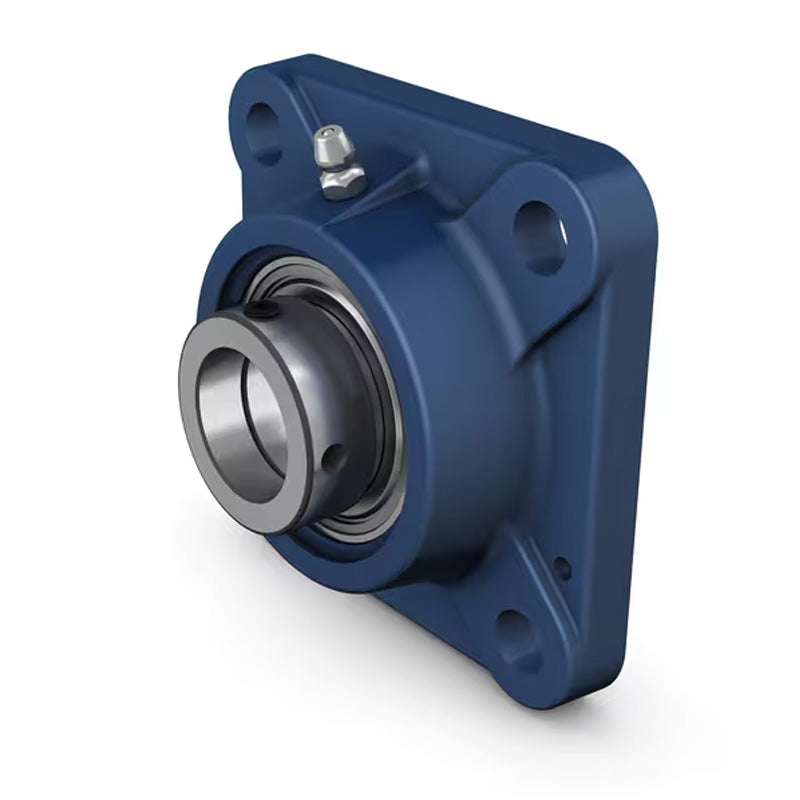

SKF FY15FM Square Cast Housing with Eccentric Locking Collar 15mm Insert
- Regular price
- $51.86 ex VAT
- Sale price
- $51.86
- Regular price
-
In stock
Quantity Price Breaks
10+
$46.16
19+
$43.56
29+
$43.04
39+
$42.53
49+
$42.01
74+
$41.49
99+
$38.90
199+
$38.38
249+
$37.86
499+
$37.34
999+
$36.30
SKU:
FY15FM-SKF
SKF FY15FM Square Cast Housing with Eccentric Locking Collar 15mm Insert
- Regular price
- $51.86 ex VAT
- Sale price
- $51.86
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 15mm |
| A1 | = | 26mm |
| A2 | = | 11mm |
| B1 | = | 28.6mm |
| Da | = | 55.6mm |
| J | = | 54mm |
| L | = | 76mm |
| N | = | 11.5mm |
| G | = | 10mm |
| s1 | = | 22.1mm |
| T | = | 39.1mm |
| Static load Cr | = | 4.75 kN |
| Dynamic load Cor | = | 9.56 kN |
| Fatigue load limit Pu | = | 0.2 kN |
| Limiting speed | = | 9500 rpm |
| Weight | = | 0.5 kg |
