SKU: FY1.3/4FM-SKF

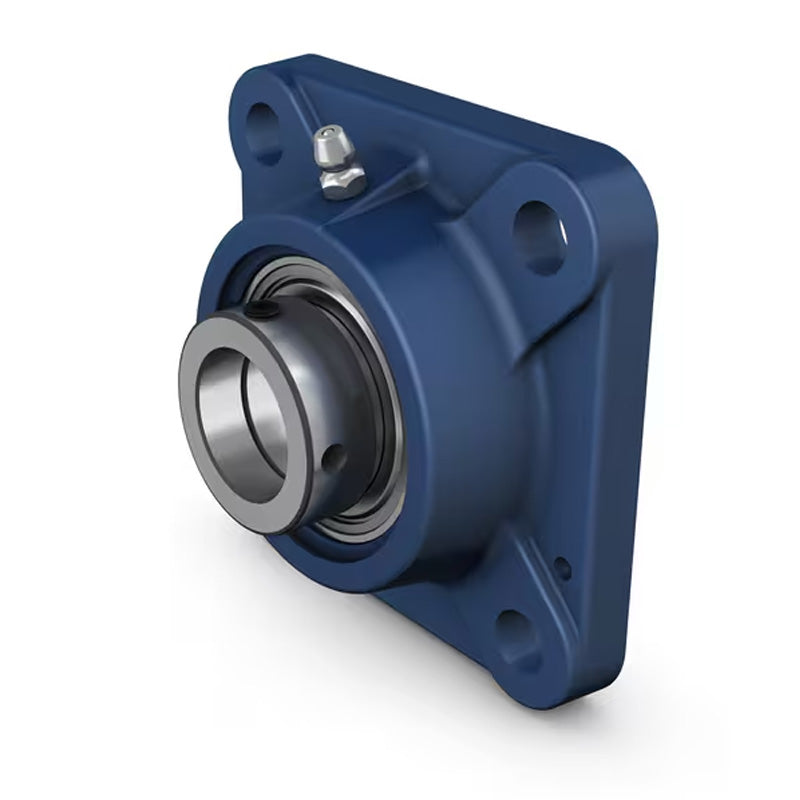

SKF FY1-3/4FM Square Cast Housing with Eccentric Collar 1-3/4 inch Insert
- Regular price
- $135.74 ex VAT
- Sale price
- $135.74
- Regular price
-
In stock
Quantity Price Breaks
10+
$120.81
19+
$114.02
29+
$112.66
39+
$111.31
49+
$109.95
74+
$108.59
99+
$101.81
199+
$100.45
249+
$99.09
499+
$97.73
999+
$95.02
SKU:
FY1.3/4FM-SKF
SKF FY1-3/4FM Square Cast Housing with Eccentric Collar 1-3/4 inch Insert
- Regular price
- $135.74 ex VAT
- Sale price
- $135.74
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 1-3/4 inch |
| A1 | = | 39mm |
| A2 | = | 34mm |
| B1 | = | 43.7mm |
| J | = | 105mm |
| L | = | 137mm |
| G | = | 34mm |
| s1 | = | 32.7mm |
| T | = | 56.5mm |
| Static load Cr | = | 21.6 kN |
| Dynamic load Cor | = | 33.2 kN |
| Fatigue load limit | = | 0.915 kN |
| Limiting speed | = | 4300 rpm |
| Weight | = | 2.15 kg |
| Housing | = | |
| Insert | = |
