SKU: FY1.3/16FM-SKF

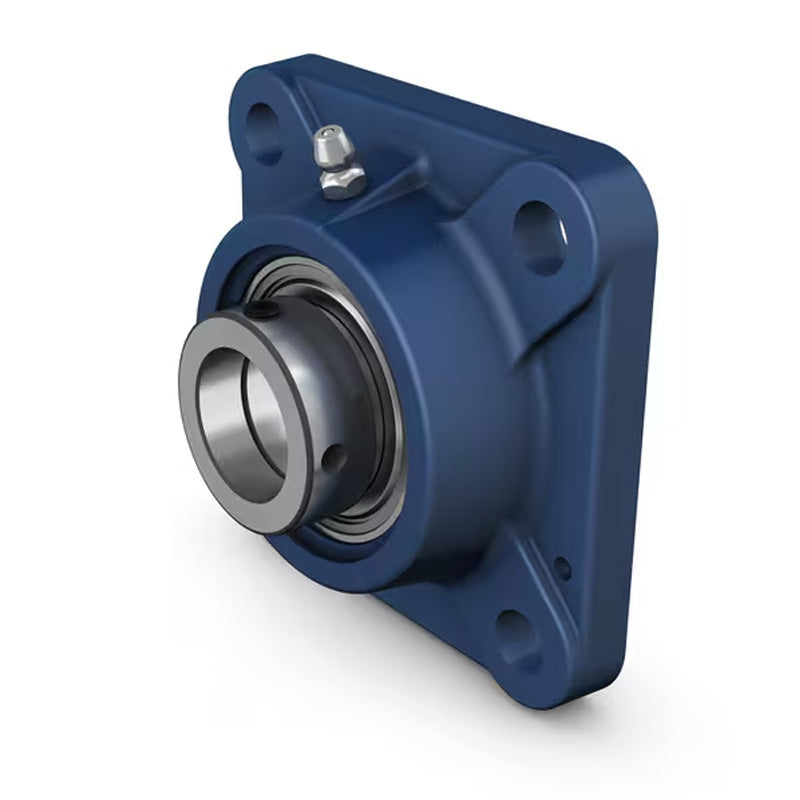

SKF FY1-3/16FM Square Cast Housing with Eccentric Collar 1-3/16 inch Insert
- Regular price
- $83.05 ex VAT
- Sale price
- $83.05
- Regular price
-
In stock
Quantity Price Breaks
10+
$73.91
19+
$69.76
29+
$68.93
39+
$68.10
49+
$67.27
74+
$66.44
99+
$62.29
199+
$61.46
249+
$60.63
499+
$59.80
999+
$58.14
SKU:
FY1.3/16FM-SKF
SKF FY1-3/16FM Square Cast Housing with Eccentric Collar 1-3/16 inch Insert
- Regular price
- $83.05 ex VAT
- Sale price
- $83.05
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing and Locking Collar: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 1-3/16 inch |
| A1 | = | 32.5mm |
| A2 | = | 13mm |
| B1 | = | 35.7mm |
| J | = | 82.5mm |
| L | = | 108mm |
| G | = | 30mm |
| s1 | = | 26.7mm |
| T | = | 46.7mm |
| Static load Cr | = | 11.2 kN |
| Dynamic load Cor | = | 19.5 kN |
| Fatigue load limit | = | 0.475 kN |
| Limiting speed | = | 6300 rpm |
| Weight | = | 1.1 kg |
| Housing | = | |
| Insert | = |
