SKU: FY1.1/4TF-SKF

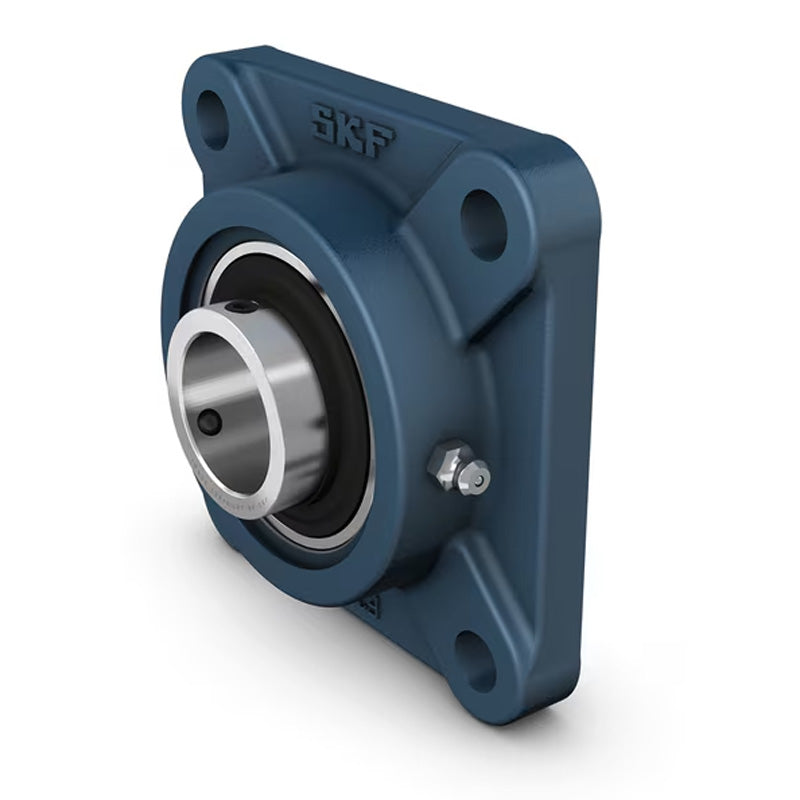

SKF FY1-1/4TF Square Cast Housing with Grub Screw 1-1/4 inch Insert
- Regular price
- $92.75 ex VAT
- Sale price
- $92.75
- Regular price
-
In stock
Quantity Price Breaks
10+
$82.55
19+
$77.91
29+
$76.98
39+
$76.06
49+
$75.13
74+
$74.20
99+
$69.56
199+
$68.64
249+
$67.71
499+
$66.78
999+
$64.93
SKU:
FY1.1/4TF-SKF
SKF FY1-1/4TF Square Cast Housing with Grub Screw 1-1/4 inch Insert
- Regular price
- $92.75 ex VAT
- Sale price
- $92.75
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
Technical
| d | = | 1-1/4 inch |
| A1 | = | 34.5mm |
| A2 | = | 13mm |
| B | = | 42.9mm |
| Da | = | 106.4mm |
| J | = | 92mm |
| L | = | 118mm |
| N | = | 14mm |
| G | = | 12mm |
| s1 | = | 25.4mm |
| T | = | 46.4mm |
| Static load Cr | = | 15.3 kN |
| Dynamic load Cor | = | 25.5 kN |
| Fatigue load limit | = | 0.655 kN |
| Limiting speed | = | 5300 rpm |
| A5 | = | 22mm |
| Weight | = | 1.45 kg |
| Housing | = | FY507M |
| Insert | = | YAR207-104-2F |
