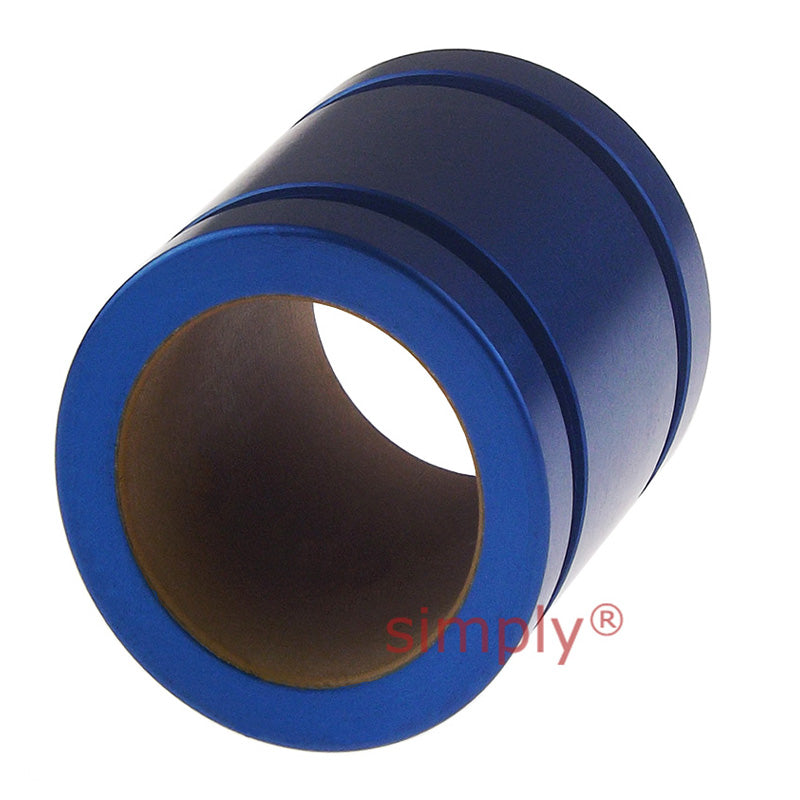

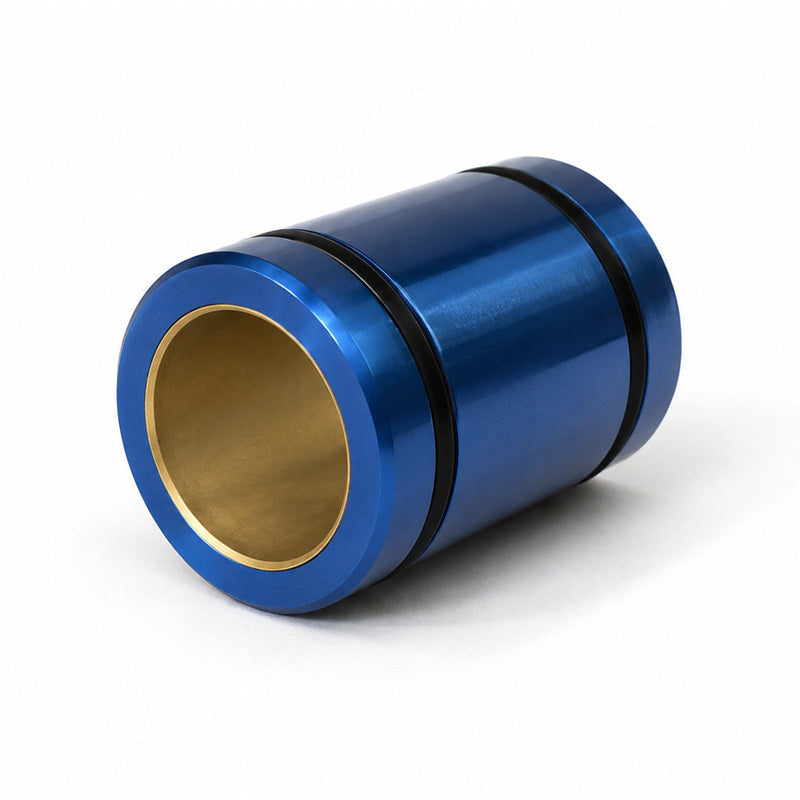

Simplicity FMT40 Metric Compact Precision Thin Wall Linear Plain Bearing with Frelon Gold Liner 40x52x60mm Allow 2-3 Days
- Regular price
- $142.46 ex VAT
- Sale price
- $142.46
- Regular price
-
Description
Simplicity Metric Compact Precision Thin Wall Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. They are made from the same construction and smooth operation as the FM series but in a more compact package. The Frelon GOLD® has a dark gold high performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self lubricating for oil free operation, Static Load Capacities up to 72 kN, Wide temperature range from -240 to 204 degree C
Technical
| Nominal Size | = | 40mm |
| Bearing ID A Min | = | 40.025mm |
| Bearing ID A Max | = | 40.064mm |
| Outside Diameter B h7 Min | = | 51.97mm |
| Outside Diameter B h7 Max | = | 52mm |
| Length C Min | = | 59.619mm |
| Length C Max | = | 60mm |
| Concentric Max | = | 0.0254mm |
| Between O-Ring Grooves J | = | 40mm |
| O-Ring Grooves Width JA | = | 4.1mm |
| O-Ring Grooves Diameter JB | = | 46.2mm |
| O-Ring Size | = | 46x3.5 |
| O-Ring Part No. | = | 6000035 |
| Effective Surface Area | = | 24CM< |
| sup> | = | 2< |
| /sup> | = | |
| Max Static Load Frelon& | = | reg |
| = | 49442 N | |
| PV Max | = | 0.7 N/mm< |
| sup> | = | 2< |
| /sup> | = | |
| Speed Running Dry | = | 1.52 (m/s) |
| Speed Running with Lubrication | = | 4.19 (m/s) |
