PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)

SKU: FLN40-PBC

PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)

$516.58 ex VAT
$516.58
ex VAT
In stock

Quantity Price Breaks

10+ $459.76
19+ $433.93
29+ $428.76
39+ $423.60
49+ $418.43
74+ $413.26
99+ $387.44
199+ $382.27
249+ $377.10
499+ $371.94
999+ $361.61
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)
SKU: FLN40-PBC

PBC FLN 40 Imperial Open Precision Linear Plain Bearing with Frelon Gold 2.5x3.75x5 inch (Allow 2-3 Days)

$516.58 ex VAT
$516.58
ex VAT

Description

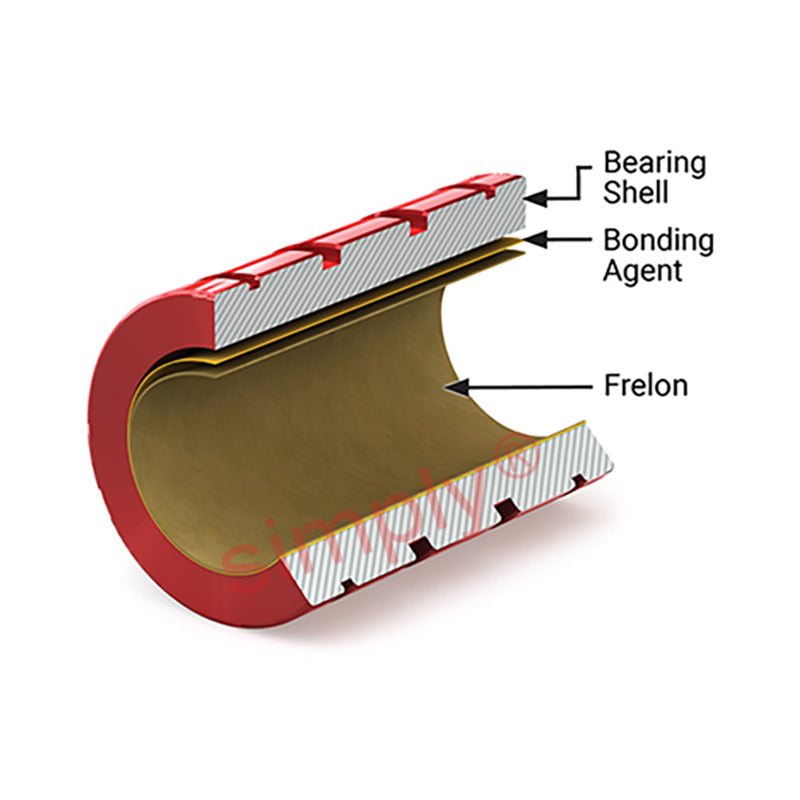

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C

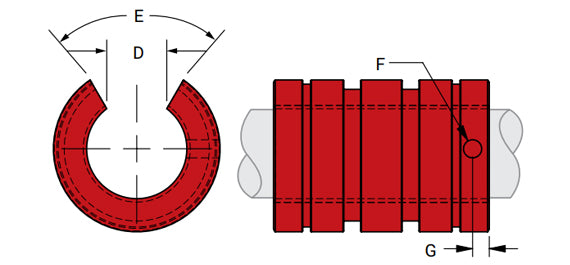

Technical

Inside Diameter (A) = 63.5mm = 2.5 (2-1/2) inch
Outside Diameter (B) = 95.25mm = 3.75 (3-3/4) inch
Width (C) = 127mm = 5 inch
Nominal Bore Size = 2-1/2 inch
Effective Surface Area (Square Inch) = 13 inch
Max Static Load = 173.33kN
Weight = 1.277kg
