SKU: FLCTEY15-XL-INA

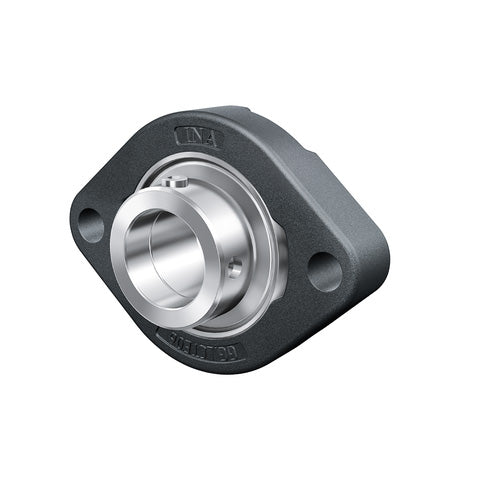

INA FLCTEY15XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 15mm Bore
- Regular price
- $36.52 ex VAT
- Sale price
- $36.52
- Regular price
-
In stock
Quantity Price Breaks
10+
$32.50
19+
$30.68
29+
$30.31
39+
$29.95
49+
$29.58
74+
$29.22
99+
$27.39
199+
$27.02
249+
$26.66
499+
$26.29
999+
$25.56
SKU:
FLCTEY15-XL-INA
INA FLCTEY15XL Two Bolt Cast Iron Oval Housing with Grub Screw Insert 15mm Bore
- Regular price
- $36.52 ex VAT
- Sale price
- $36.52
- Regular price
-
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft. Note: This housing unit does not have a relubrication facility. Benefits: Grub screw fixing, tolerates misalignment of the shaft. |

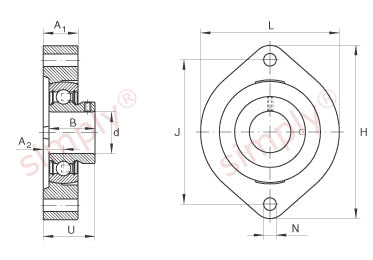

Technical
| d | = | 15mm |
| H | = | 81mm |
| U | = | 24.4mm |
| A1 | = | 15mm |
| A2 | = | 8.4mm |
| B | = | 22mm |
| J | = | 63.5mm |
| L | = | 58.7mm |
| N | = | 6.6mm |
| Mass | = | 0.27 kg |
| Basic dynamic load rating Cr | = | 10100 N |
| Basic static load rating Cor | = | 4750 N |
| Designation of housing | = | LCTE03 |
| Designation of bearing | = | AY15-XL-NPP-B |
