SKU: FD211_1-3/4HX-MB

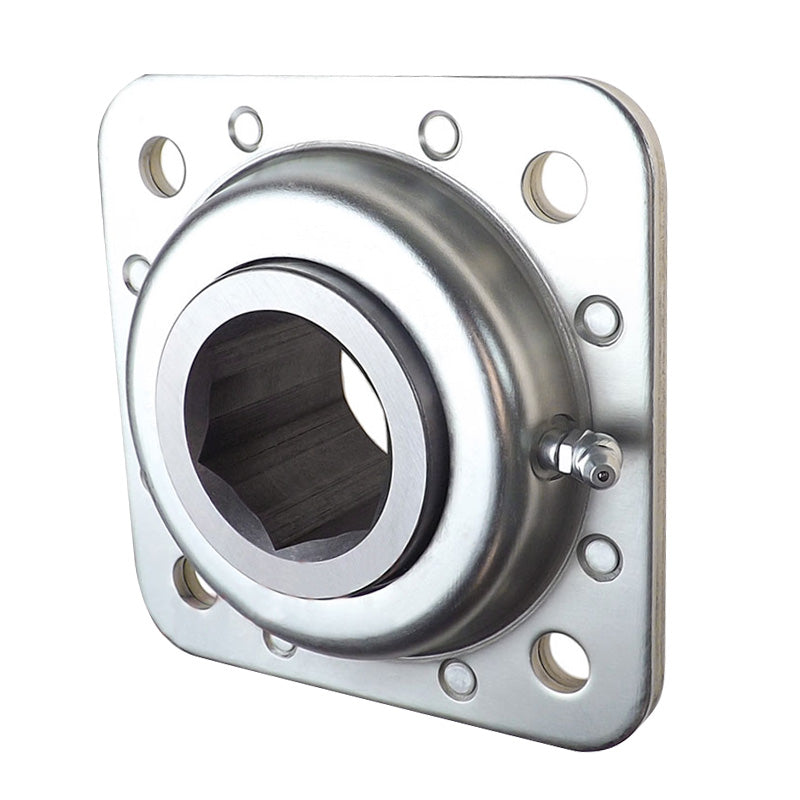

Major Branded FD211134HX Seedbed Finisher Hex Bore Relubricatable Flanged Disc with Bolt Holes 1.78x5.5x2.1875 inch
- Regular price
- $98.95 ex VAT
- Sale price
- $98.95
- Regular price
-
In stock
Quantity Price Breaks
10+
$88.07
19+
$83.12
29+
$82.13
39+
$81.14
49+
$80.15
74+
$79.16
99+
$74.21
199+
$73.22
249+
$72.23
499+
$71.24
999+
$69.27
SKU:
FD211_1-3/4HX-MB
Major Branded FD211134HX Seedbed Finisher Hex Bore Relubricatable Flanged Disc with Bolt Holes 1.78x5.5x2.1875 inch
- Regular price
- $98.95 ex VAT
- Sale price
- $98.95
- Regular price
-
Description
Seedbed Finisher
Application conditions:
- Utilizes two bearing assemblies
- High misalignment from imprecise mounting and wide bearing spread attachments can generate severe stress on the internal components
- Exposed directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage and housing wear
- Shock load protection due to thick riveted steel housings
- Exclusive patented sealing system eliminates the need for daily relubrication
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe
Technical
| A/d | = | 1.78 inch = 45.212mm |
| Bi | = | 2.1875 inch = 55.563mm |
| L | = | 5.5 inch = 139.7mm |
| D Bolt Circle | = | 5.5 inch = 139.7mm |
| B Min. Frame Opening | = | 4.491 inch = 114.07mm |
| Seal/Shield Type | = | P, TRL Seal |
