SKU: FD211_1-1/2SQ-MB

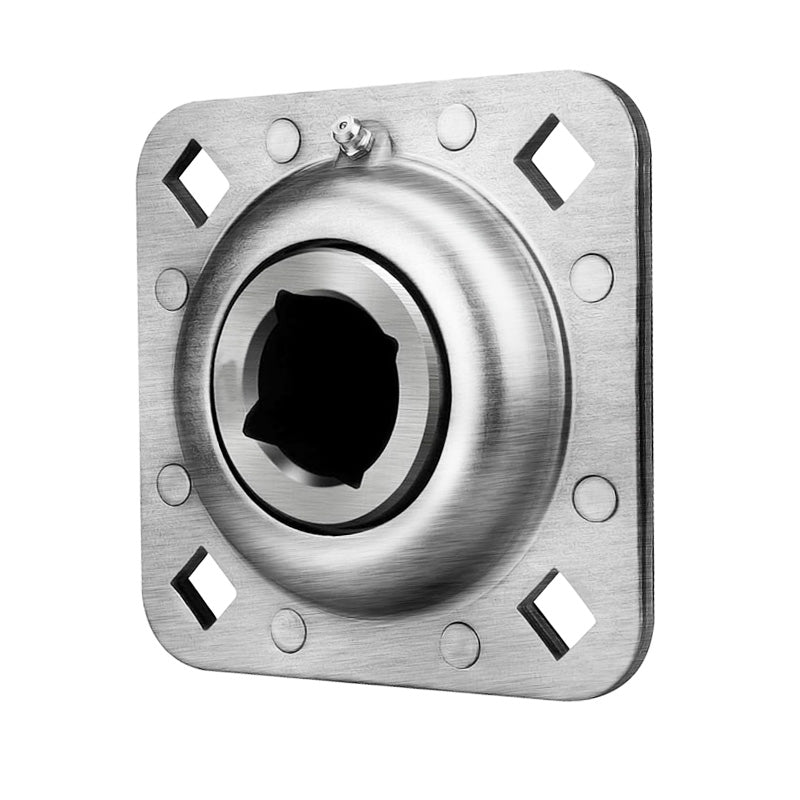

Major Branded FD211112SQ Seedbed Finisher Square Bore Relubricatable Flanged Disc with Bolt Slots 1.531x5.5x2 inch
- Regular price
- $95.86 ex VAT
- Sale price
- $95.86
- Regular price
-
In stock
Quantity Price Breaks
10+
$85.32
19+
$80.52
29+
$79.56
39+
$78.61
49+
$77.65
74+
$76.69
99+
$71.90
199+
$70.94
249+
$69.98
499+
$69.02
999+
$67.10
SKU:
FD211_1-1/2SQ-MB
Major Branded FD211112SQ Seedbed Finisher Square Bore Relubricatable Flanged Disc with Bolt Slots 1.531x5.5x2 inch
- Regular price
- $95.86 ex VAT
- Sale price
- $95.86
- Regular price
-
Description
Seedbed Finisher
Application conditions:
- Utilizes two bearing assemblies
- High misalignment from imprecise mounting and wide bearing spread attachments can generate severe stress on the internal components
- Exposed directly into the flow of soil and crop residue
Bolt-on-performance:
- Directly interchangeable industry standard units
- Static misalignment capability accommodates imprecise mounting surfaces
- Dynamic misalignment capability eliminates internal bearing damage and housing wear
- Shock load protection due to thick riveted steel housings
- Exclusive patented sealing system eliminates the need for daily relubrication
Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

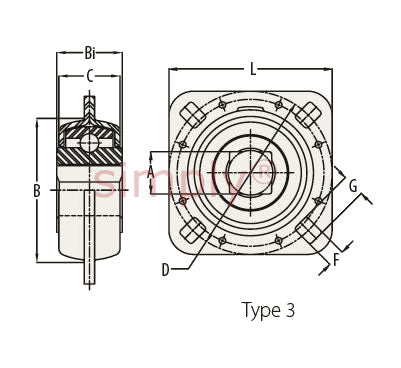

Technical
| A/d | = | 1.531 inch = 38.887mm |
| Bi | = | 2 inch = 50.8mm |
| L | = | 5.5 inch = 139.7mm |
| D Bolt Circle | = | 5.5 inch = 139.7mm |
| F | = | 0.531 inch = 13.5mm |
| G | = | 0.687 inch = 17.45mm |
| B Min. Frame Opening | = | 4.491 inch = 114.07mm |
| C | = | 1.811 inch = 46mm |
| Seal/Shield Type | = | P, TRL Seal |
