RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert

SKU: FC55-RHP

RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert

$151.60 ex VAT
$151.60
ex VAT
In stock

Quantity Price Breaks

10+ $134.92
19+ $127.34
29+ $125.83
39+ $124.31
49+ $122.80
74+ $121.28
99+ $113.70
199+ $112.18
249+ $110.67
499+ $109.15
999+ $106.12
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert
SKU: FC55-RHP

RHP FC55-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 55mm Insert

$151.60 ex VAT
$151.60
ex VAT

Description

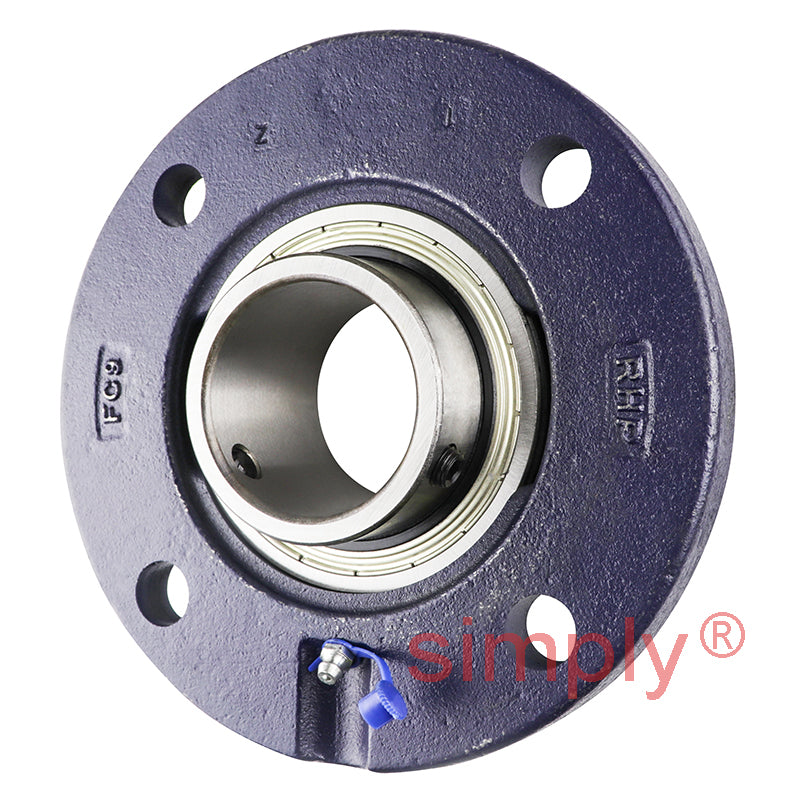

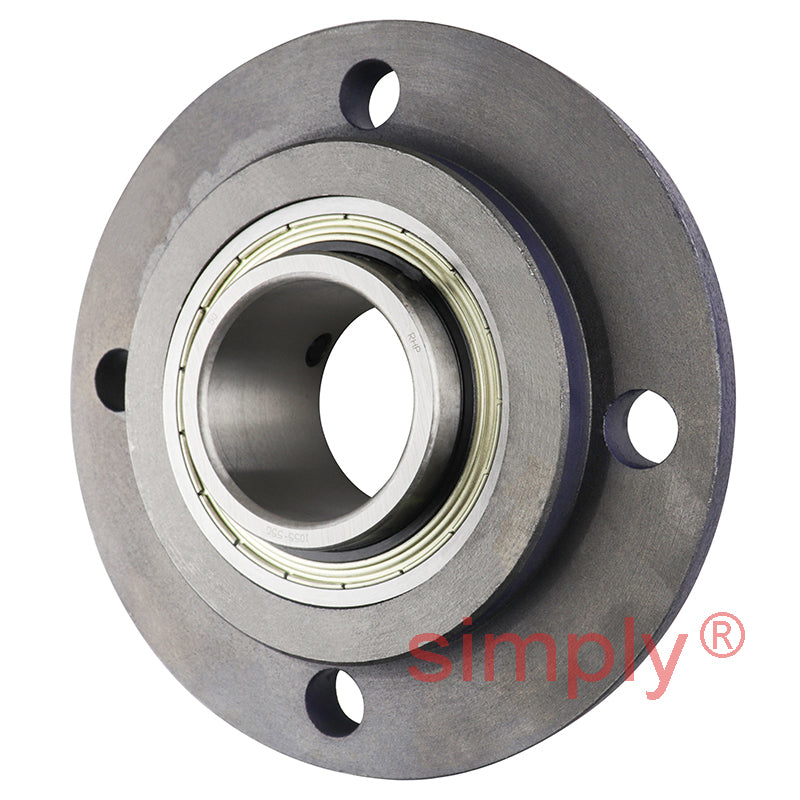

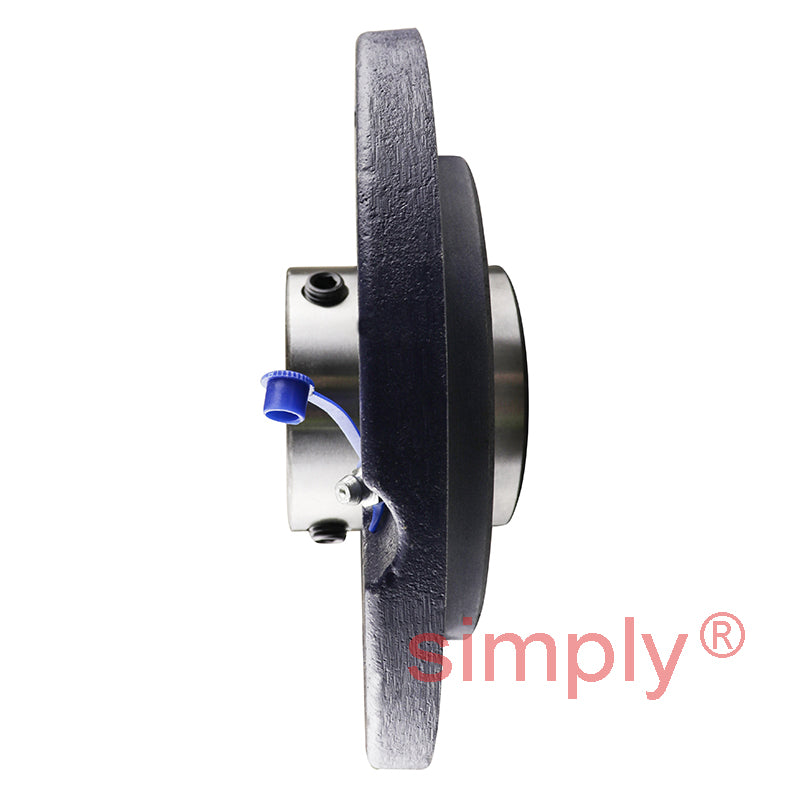

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

Technical

Bore = 55mm
L = 185mm
H = 125mm
J = 150mm
G = 16mm
A = 27.5mm
A1 = 33.3mm
A5 = 15mm
B = 55.55mm
s = 22.28mm
d1 = 68.81mm
Dynamic load = 43500 N
Static load = 29200 N
Rec max speed = 3100 rpm
Weight = 4 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1055-55G+insonly"
> = 1055-55G Click Here<
/a> =
Casting group = 9
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
