SKU: FC35A-RHP
RHP FC35A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
- Regular price
- $82.77 ex VAT
- Sale price
- $82.77
- Regular price
-
In stock
Quantity Price Breaks
10+
$73.67
19+
$69.53
29+
$68.70
39+
$67.87
49+
$67.04
74+
$66.22
99+
$62.08
199+
$61.25
249+
$60.42
499+
$59.59
999+
$57.94
SKU:
FC35A-RHP
RHP FC35A-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 35mm Insert
- Regular price
- $82.77 ex VAT
- Sale price
- $82.77
- Regular price
-
Description
|

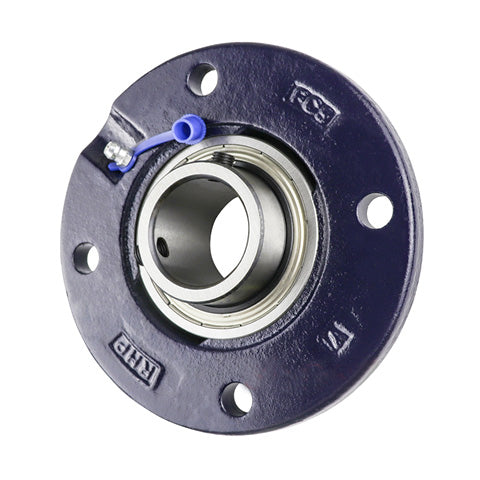

RHP FC A Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 35mm |
| L | = | 135mm |
| H | = | 90mm |
| J | = | 110mm |
| G | = | 10mm |
| A | = | 20.5mm |
| A1 | = | 24.4mm |
| A5 | = | 10mm |
| B1 | = | 34.9mm |
| s1 | = | 9.55mm |
| d1 | = | 46.69mm |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.5 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1235-35AG+insonly" |
| > | = | 1235-35AG Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
