SKU: FC2R-RHP

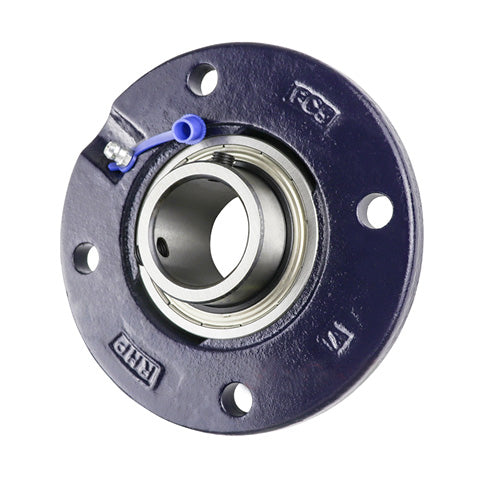

RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
- Regular price
- $142.06 ex VAT
- Sale price
- $142.06
- Regular price
-
In stock
Quantity Price Breaks
10+
$126.43
19+
$119.33
29+
$117.91
39+
$116.49
49+
$115.07
74+
$113.65
99+
$106.55
199+
$105.12
249+
$103.70
499+
$102.28
999+
$99.44
SKU:
FC2R-RHP
RHP FC2R-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2 inch Insert
- Regular price
- $142.06 ex VAT
- Sale price
- $142.06
- Regular price
-
Description
|
RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2 inch |
| L | = | 6.496 inch |
| H | = | 4.331 inch |
| J | = | 5.315 inch |
| G | = | 0.5 inch |
| A | = | 0.984 inch |
| A1 | = | 1.241 inch |
| A5 | = | 0.512 inch |
| B | = | 2.031 inch |
| s | = | 0.752 inch |
| d1 | = | 2.449 inch |
| Dynamic load | = | 35000 N |
| Static load | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-2G+insonly" |
| > | = | 1050-2G Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
