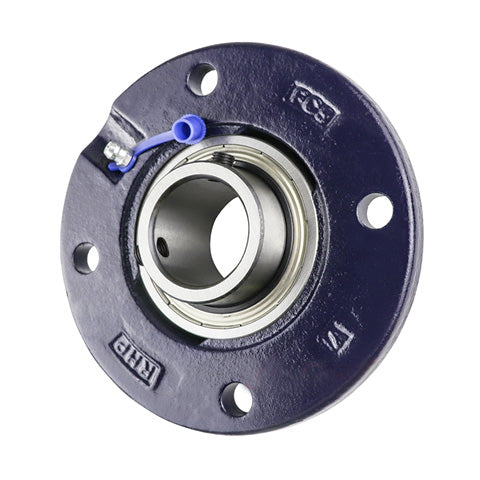

RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert

SKU: FC2.7/16-RHP

RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert

$180.47 ex VAT
$180.47
ex VAT
In stock

Quantity Price Breaks

10+ $160.62
19+ $151.59
29+ $149.79
39+ $147.99
49+ $146.18
74+ $144.38
99+ $135.35
199+ $133.55
249+ $131.74
499+ $129.94
999+ $126.33
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert
SKU: FC2.7/16-RHP

RHP FC2.7/16-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 2-7/16 inch Insert

$180.47 ex VAT
$180.47
ex VAT

Description

RHP FC Series 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width bearing insert

Technical

Bore = 2-7/16 inch
L = 7.677 inch
H = 5.315 inch
J = 6.299 inch
G = 0.625 inch
A = 1.142 inch
A1 = 1.522 inch
A5 = 0.63 inch
B = 2.562 inch
s = 1.002 inch
d1 = 2.966 inch
Dynamic load = 48000 N
Static load = 33000 N
Rec max speed = 2800 rpm
Weight = 4.7 kg
Insert = <
a href=" = advanced_search_result.php?keywords=1060-2-7/16G+insonly"
> = 1060-2-7/16G Click Here<
/a> =
Casting group = 10
Grease nipple thread = 1/4 UNF, 1/4 inch x 28 TPI
