SKU: F90F-MB
Major Branded F90F-MB Drive Coupling Inner Tapered Locking Bush Type Max Bush Bore 60mm / 2-1/2 inch
- Regular price
- $83.04 ex VAT
- Sale price
- $83.04
- Regular price
-
In stock
Quantity Price Breaks
10+
$73.91
19+
$69.75
29+
$68.92
39+
$68.09
49+
$67.26
74+
$66.43
99+
$62.28
199+
$61.45
249+
$60.62
499+
$59.79
999+
$58.13
SKU:
F90F-MB
Major Branded F90F-MB Drive Coupling Inner Tapered Locking Bush Type Max Bush Bore 60mm / 2-1/2 inch
- Regular price
- $83.04 ex VAT
- Sale price
- $83.04
- Regular price
-
Description
Branded Drive Coupling Inner Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

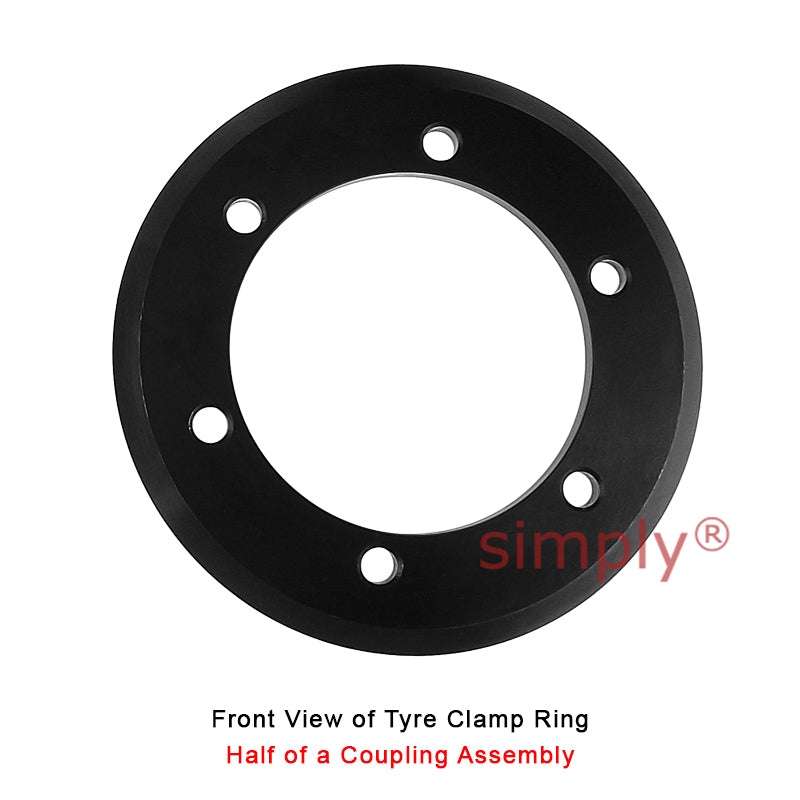

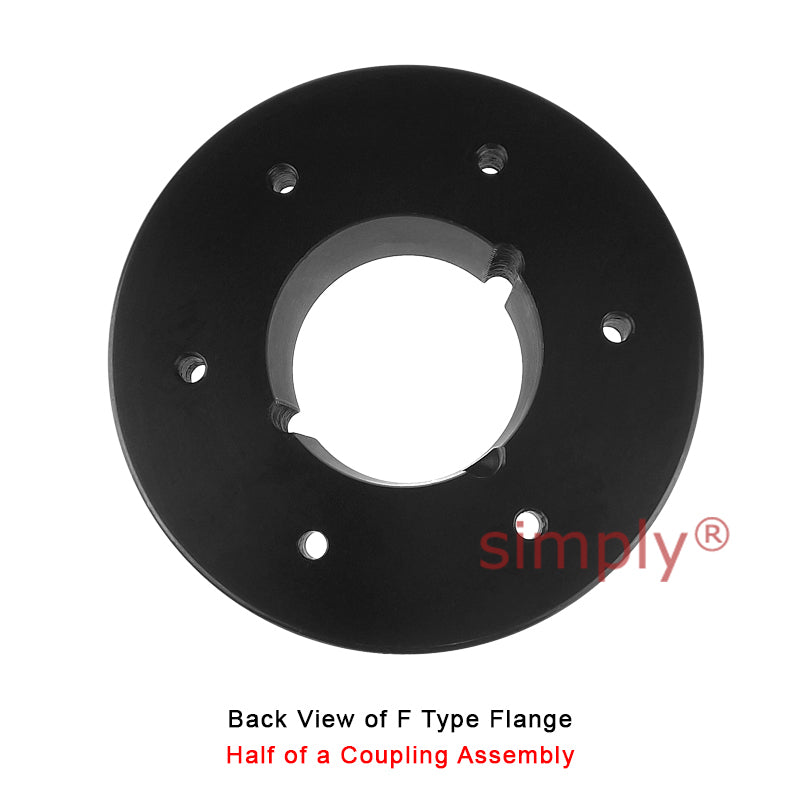

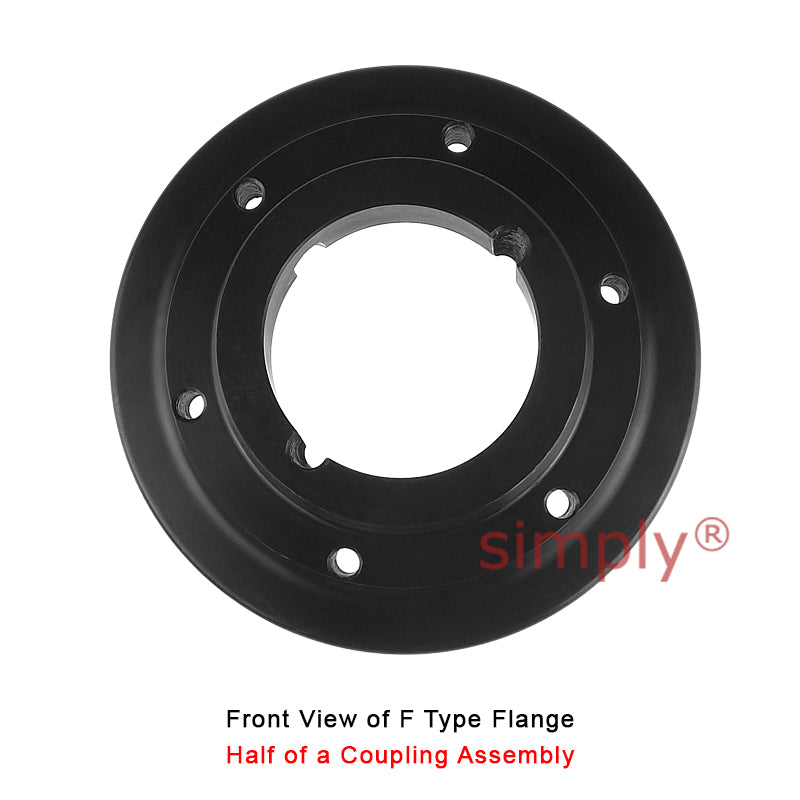

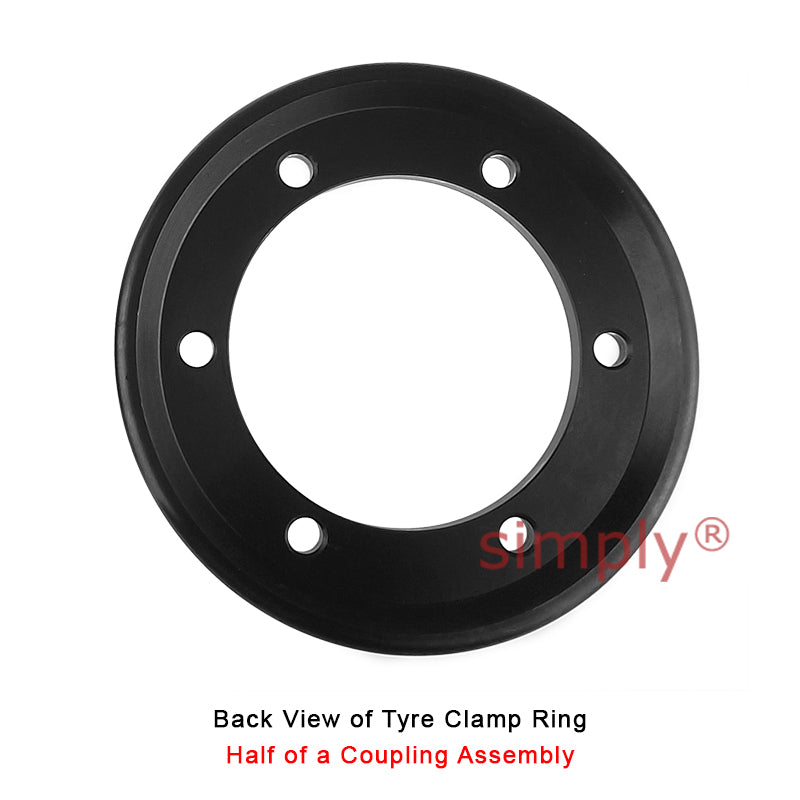

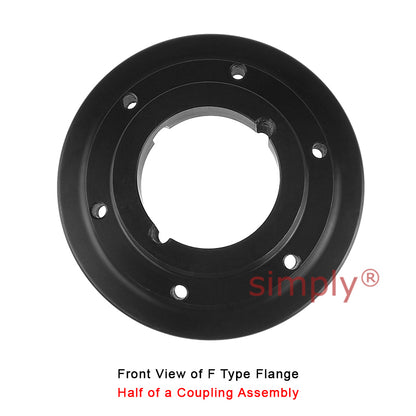

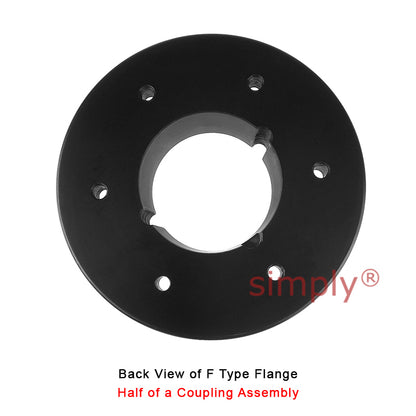

This coupling is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Technical
| F Type - Bush | = | 2517 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+2517" |
| > | = | [Click Here]< |
| /a> | = | |
| F Type - Max Bore | = | 60mm |
| F Type - Max Bore | = | 2-1/2 inch |
| F Type - Flange A | = | 235mm |
| F Type - Flange B | = | 108mm |
| F Type - Flange C | = | 188mm |
| F Type - Flange E | = | 13.5mm |
| F Type - Flange G | = | 48mm |
| F Type - Flange F | = | 59.5mm |
| F Type - Flange D | = | 45mm |
| F Type - Flange Weight | = | 5.5kg |
| F Type - Inertia | = | 0.031kgm2 |
| F Type - Flange Face Spacing | = | 27mm |
| F Type - Gap Between Tyre Ends | = | 3mm |
| F Type - Nominal Torque | = | 500 Nm |
| F Type - Max Speed | = | 3000 rev/min |
| F Type - Max Par Mis | = | 2.4mm |
| F Type - Max End Float | = | 3mm |

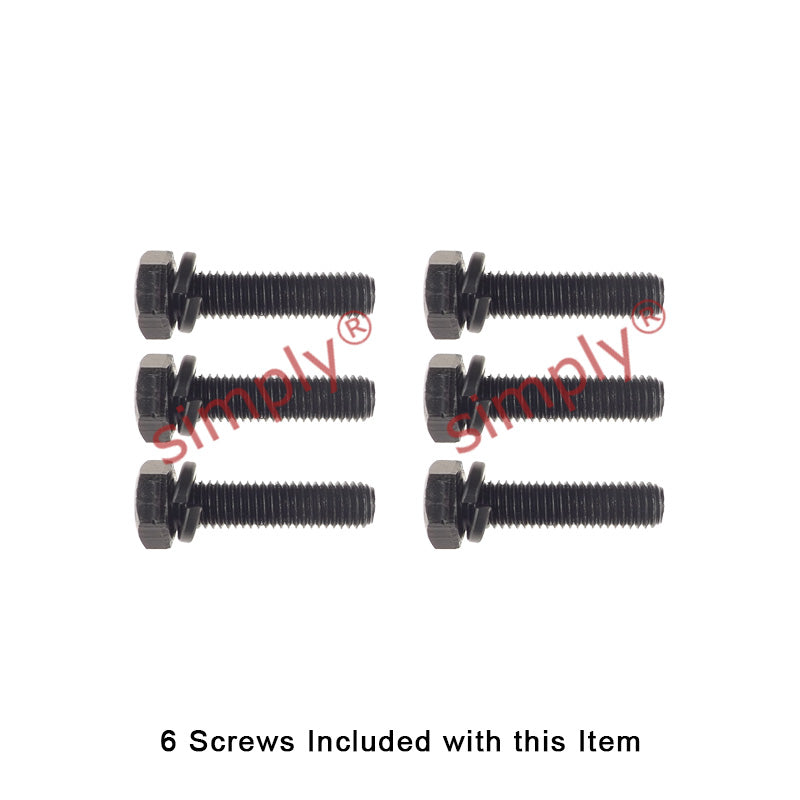

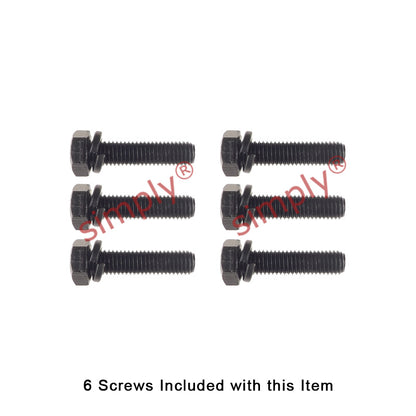

| F Type - Screw Size | = | M10 |
| F Type - Tigtening Torque | = | 40 Nm |
| Max Power at 100 rpm | = | 5.24 kW |
| Max Power at 200 rpm | = | 10.5 kW |
| Max Power at 300 rpm | = | 15.7 kW |
| Max Power at 400 rpm | = | 20.9 kW |
| Max Power at 500 rpm | = | 26.2 kW |
| Max Power at 600 rpm | = | 31.4 kW |
| Max Power at 700 rpm | = | 36.6 kW |
| Max Power at 720 rpm | = | 37.7 kW |
| Max Power at 800 rpm | = | 41.9 kW |
| Max Power at 900 rpm | = | 47.1 kW |
| Max Power at 960 rpm | = | 50.3 kW |
| Max Power at 1000 rpm | = | 52.4 kW |
| Max Power at 1200 rpm | = | 62.8 kW |
| Max Power at 1400 rpm | = | 73.3 kW |
| Max Power at 1440 rpm | = | 75.4 kW |
| Max Power at 1600 rpm | = | 83.8 kW |
| Max Power at 1800 rpm | = | 94.2 kW |
| Max Power at 2000 rpm | = | 105.5 kW |
| Max Power at 2200 rpm | = | 115 kW |
| Max Power at 2400 rpm | = | 126 kW |
| Max Power at 2600 rpm | = | 136 kW |
| Maximum Speed | = | 3000 rev/min |
| Nominal Torque | = | 500 Nm TKN |
| Maximum Torque | = | 1096 Nm TK MAX |
| Torsional Stiffness | = | 91 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 2.4mm |
| Maximum End Float | = | 3mm & |
| plusmn | = | |
| Approximate Mass | = | 1.1kg |
| Alternating Torque | = | 183 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
