SKU: F70B-MB
Major Branded F70B-MB Drive Coupling Pilot Bore Max Bore 50mm
- Regular price
- $53.22 ex VAT
- Sale price
- $53.22
- Regular price
-
In stock
Quantity Price Breaks
10+
$47.37
19+
$44.70
29+
$44.17
39+
$43.64
49+
$43.11
74+
$42.58
99+
$39.92
199+
$39.38
249+
$38.85
499+
$38.32
999+
$37.25
SKU:
F70B-MB
Major Branded F70B-MB Drive Coupling Pilot Bore Max Bore 50mm
- Regular price
- $53.22 ex VAT
- Sale price
- $53.22
- Regular price
-
Description
Branded Drive Coupling Pilot Bore: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

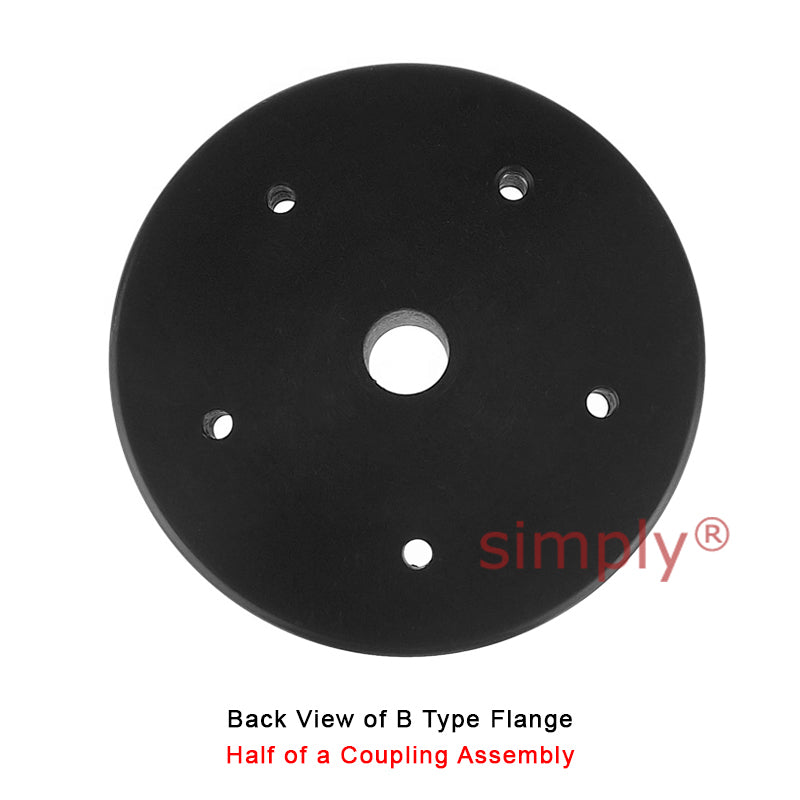

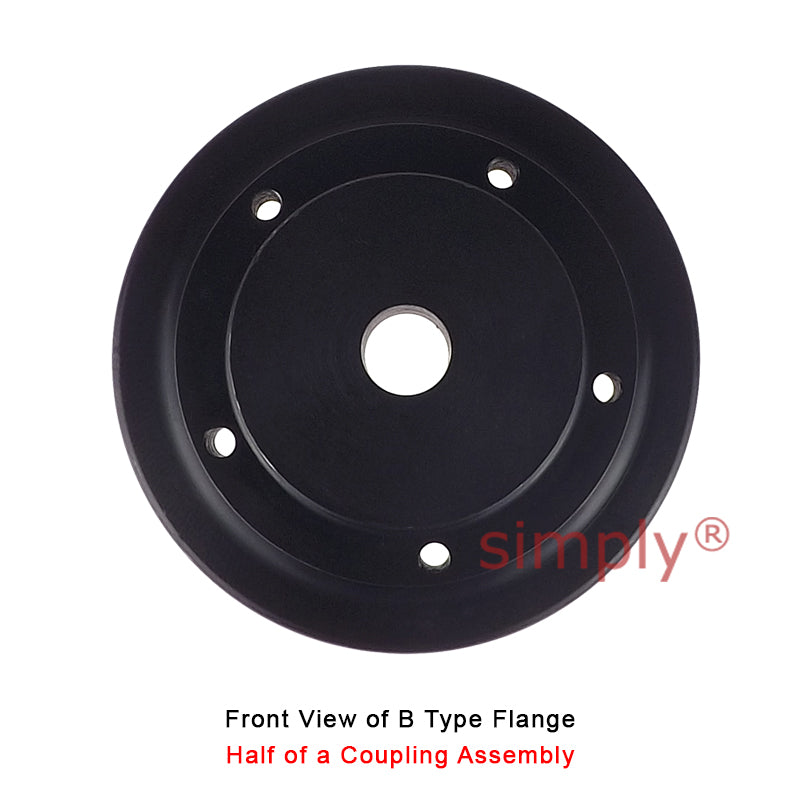

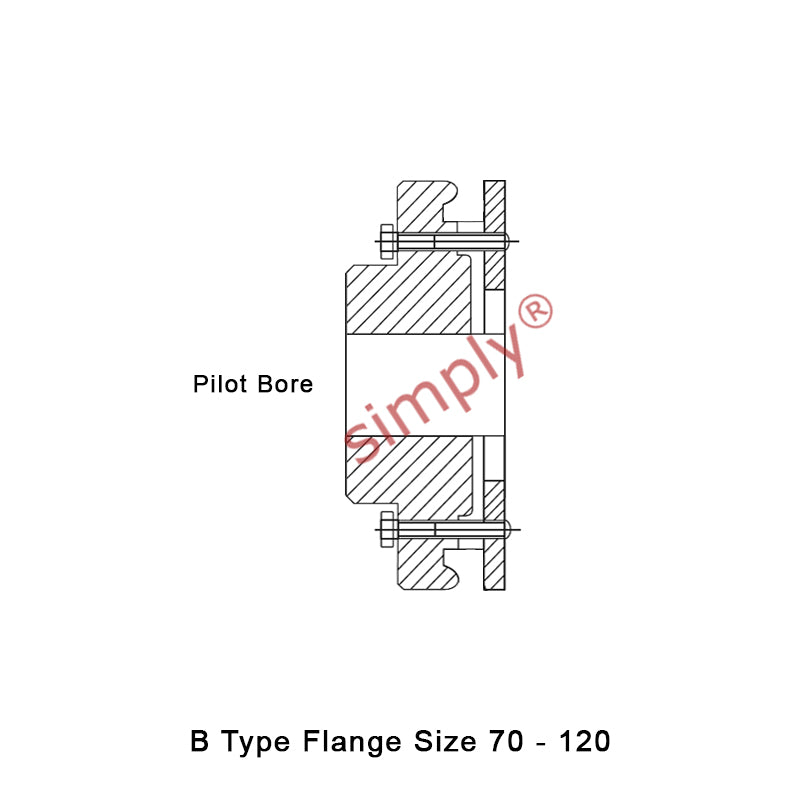

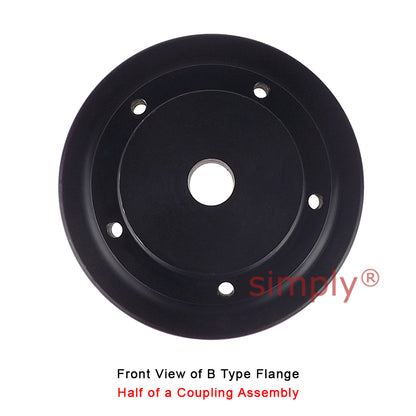

This coupling is the B type is supplied with a nominally sized pilot bore flange.

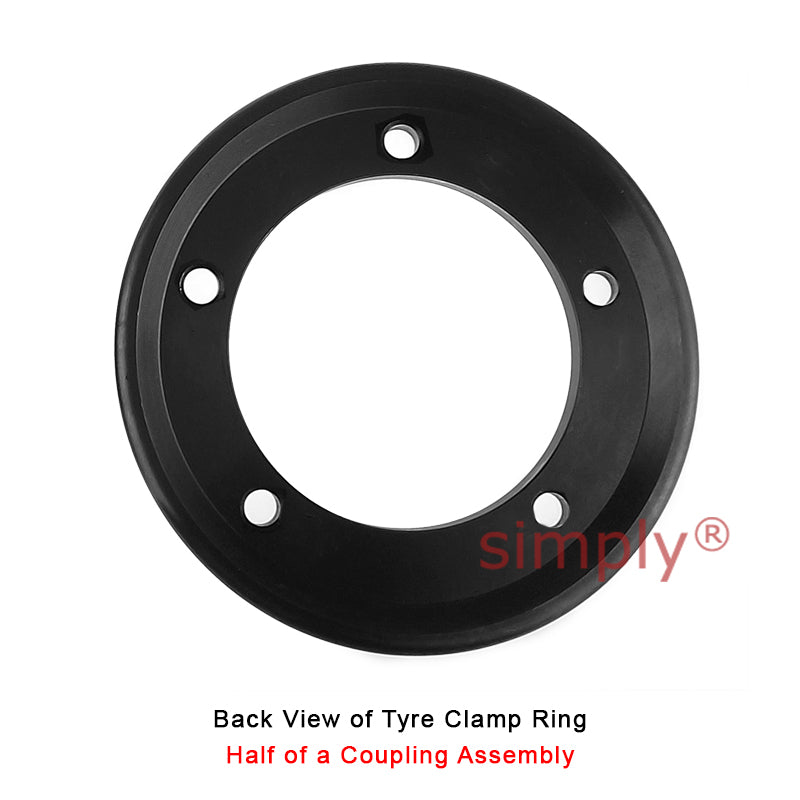

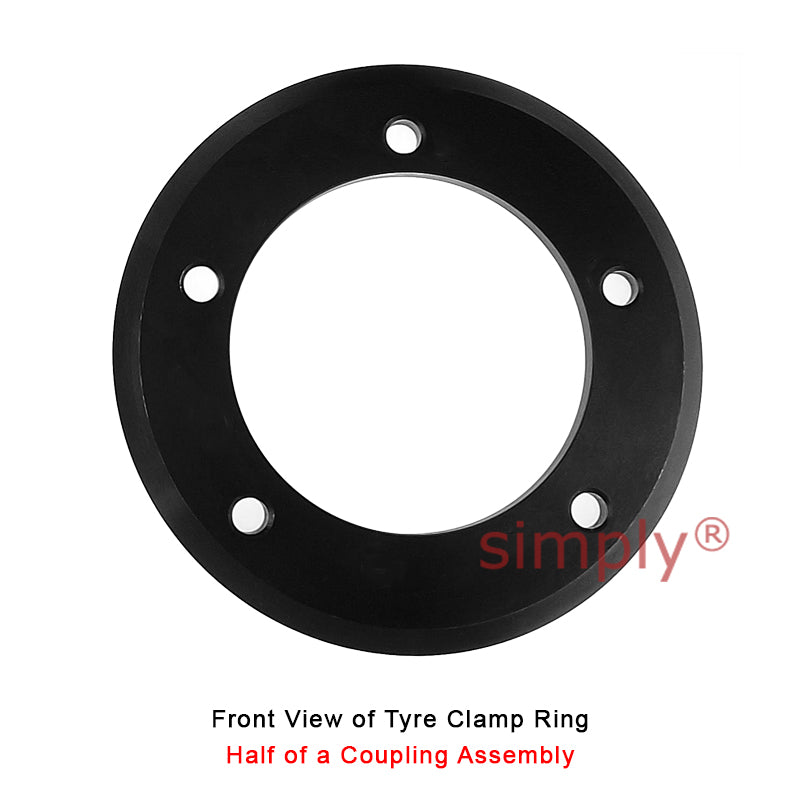

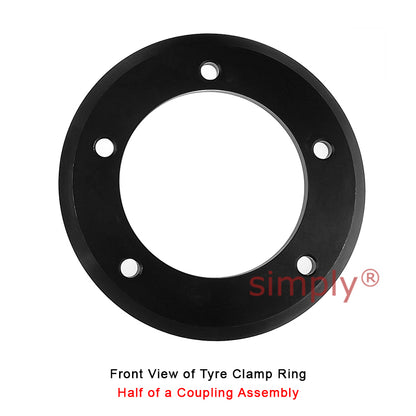

This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Technical
| B Type - Max Bore | = | 50mm |
| B Type - Flange A | = | 187mm |
| B Type - Flange B | = | 35mm |
| B Type - Flange C | = | 144mm |
| B Type - Flange E | = | 11.5mm |
| B Type - Flange F | = | 47mm |
| B Type - Flange D | = | 80mm |

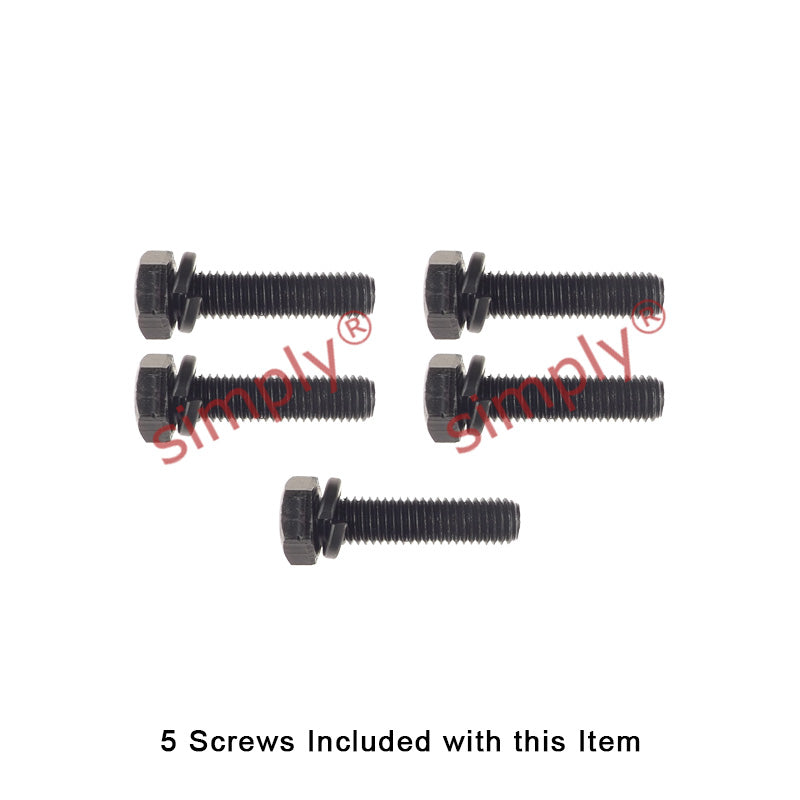

| B Type - Clamping Screws | = | M10 |
| B Type - Flange Weight | = | 3.4kg |
| B Type - Inertia | = | 0.009kgm2 |
| B Type - Flange Face Spacing | = | 23mm |
| B Type - Gap Between Tyre Ends | = | 3mm |
| B Type - Nominal Torque | = | 250 Nm |
| B Type - Max Speed | = | 3600 rev/min |
| B Type - Max Par Mis | = | 1.9mm |
| B Type - Max End Float | = | 2.3mm |
| B Type - Screw Size | = | M8 |
| B Type - Tigtening Torque | = | 24 Nm |
| Max Power at 100 rpm | = | 2.62 kW |
| Max Power at 200 rpm | = | 5.24 kW |
| Max Power at 300 rpm | = | 7.85 kW |
| Max Power at 400 rpm | = | 10.5 kW |
| Max Power at 500 rpm | = | 13.1 kW |
| Max Power at 600 rpm | = | 15.7 kW |
| Max Power at 700 rpm | = | 18.3 kW |
| Max Power at 720 rpm | = | 18.8 kW |
| Max Power at 800 rpm | = | 20.9 kW |
| Max Power at 900 rpm | = | 23.6 kW |
| Max Power at 960 rpm | = | 25.1 kW |
| Max Power at 1000 rpm | = | 26.2 kW |
| Max Power at 1200 rpm | = | 31.4 kW |
| Max Power at 1400 rpm | = | 36.6 kW |
| Max Power at 1440 rpm | = | 37.7 kW |
| Max Power at 1600 rpm | = | 41.9 kW |
| Max Power at 1800 rpm | = | 47.1 kW |
| Max Power at 2000 rpm | = | 52.4 kW |
| Max Power at 2200 rpm | = | 57.6 kW |
| Max Power at 2400 rpm | = | 62.8 kW |
| Max Power at 2600 rpm | = | 68.1 kW |
| Maximum Speed | = | 3600 rev/min |
| Nominal Torque | = | 250 Nm TKN |
| Maximum Torque | = | 487 Nm TK MAX |
| Torsional Stiffness | = | 41 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 1.9mm |
| Maximum End Float | = | 2.3mm & |
| plusmn | = | |
| Approximate Mass | = | 0.7kg |
| Alternating Torque | = | 81 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
