SKU: F7-15G-EU

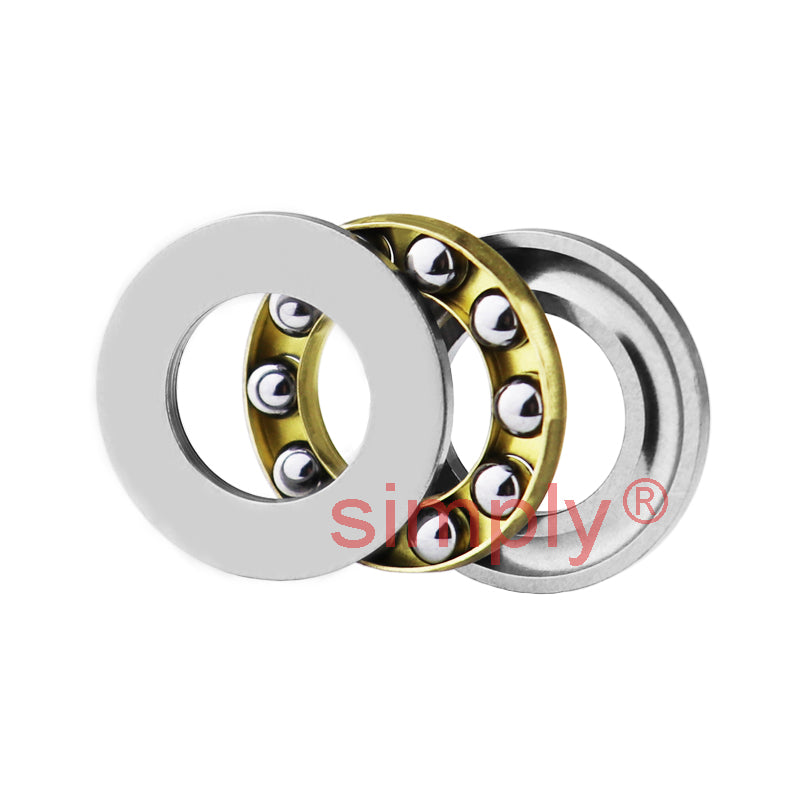

F7-15G Budget Single Thrust Ball Bearing with Grooved Washers 7x15x5mm
- Regular price
- $10.45 ex VAT
- Sale price
- $10.45
- Regular price
-
In stock
Quantity Price Breaks
10+
$9.30
19+
$8.78
29+
$8.67
39+
$8.57
49+
$8.46
74+
$8.36
99+
$7.84
199+
$7.73
249+
$7.63
499+
$7.52
999+
$7.32
SKU:
F7-15G-EU
F7-15G Budget Single Thrust Ball Bearing with Grooved Washers 7x15x5mm
- Regular price
- $10.45 ex VAT
- Sale price
- $10.45
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 7mm (+/-0.008mm) |
| D | = | 15mm (+0/-0.011mm) |
| H | = | 5mm (+0/-0.075mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 0.77 kN |
| Static load Co | = | 0.62 kN |
| Weight | = | 0.006 kg |
| Limiting Speed | = | 17000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
