SKU: F5-10G-EU

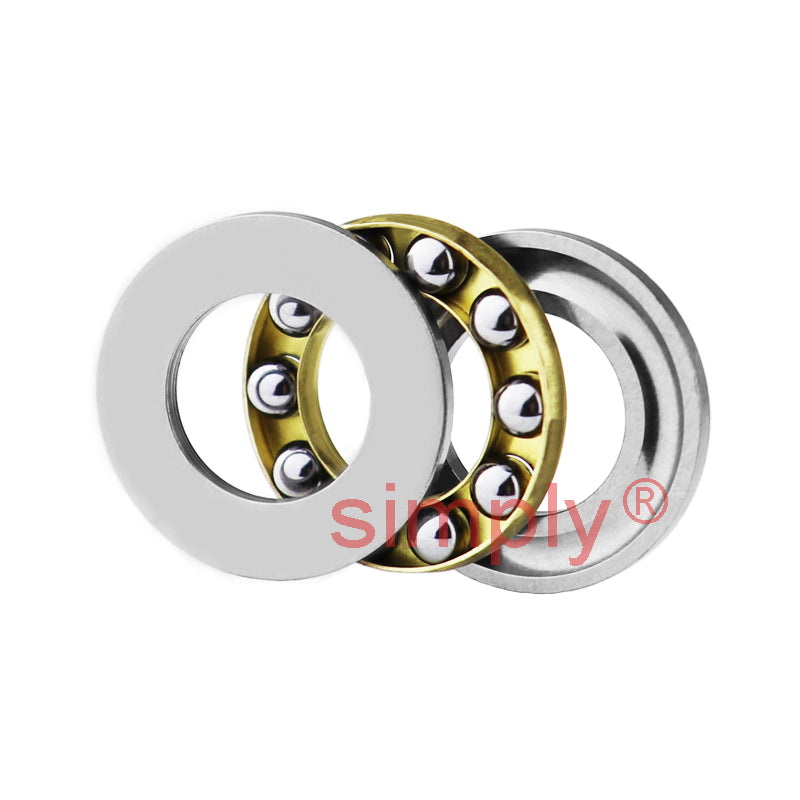

F5-10G Budget Single Thrust Ball Bearing with Grooved Washers 5x10x4mm
- Regular price
- $4.31 ex VAT
- Sale price
- $4.31
- Regular price
-
In stock
Quantity Price Breaks
10+
$3.84
19+
$3.62
29+
$3.58
39+
$3.53
49+
$3.49
74+
$3.45
99+
$3.23
199+
$3.19
249+
$3.15
499+
$3.10
999+
$3.02
SKU:
F5-10G-EU
F5-10G Budget Single Thrust Ball Bearing with Grooved Washers 5x10x4mm
- Regular price
- $4.31 ex VAT
- Sale price
- $4.31
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

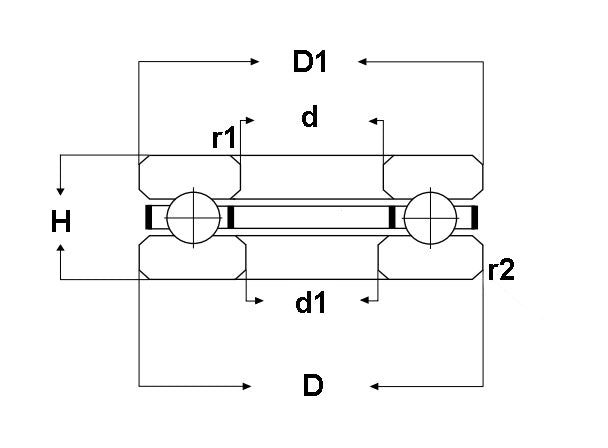

Technical
| d | = | 5mm (+0/-0.05mm) |
| D | = | 10mm (+0.005/-0.020mm) |
| H | = | 4mm (+0/-0.075mm) |
| d1 | = | 4.2mm (+0/-0.011mm) |
| D1 | = | 8.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.2mm |
| Dynamic load C | = | 0.902 kN |
| Static load Co | = | 0.912 kN |
| Limiting speed | = | 21000 rpm |
| Weight | = | 0.0014 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
