SKU: F4-10-EU

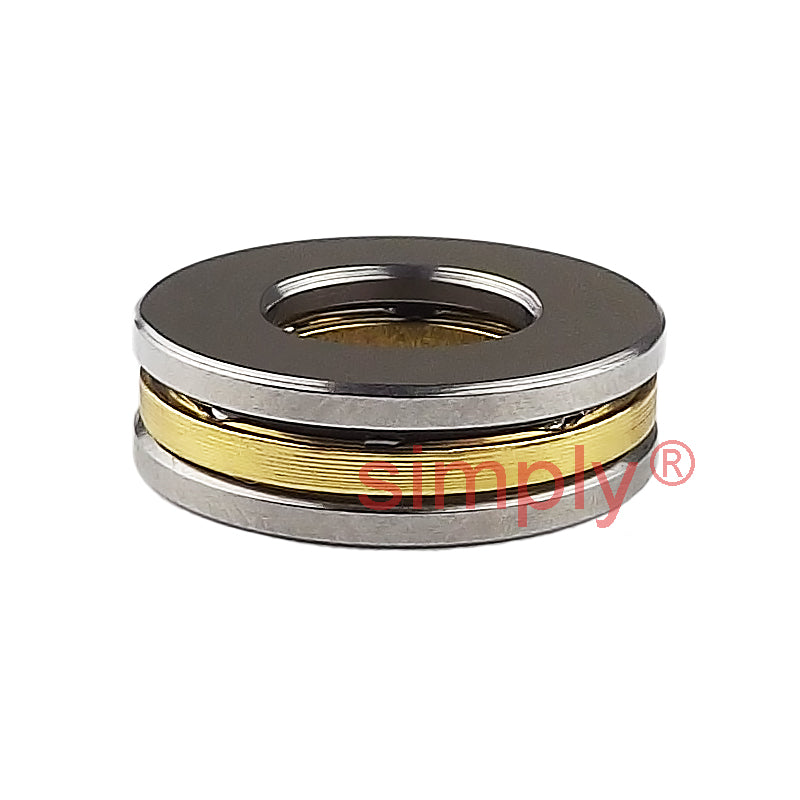

F4-10 Budget Single Thrust Ball Bearing 4x10x4.5mm
- Regular price
- $6.46 ex VAT
- Sale price
- $6.46
- Regular price
-
In stock
Quantity Price Breaks
10+
$5.75
19+
$5.43
29+
$5.36
39+
$5.30
49+
$5.23
74+
$5.17
99+
$4.85
199+
$4.78
249+
$4.72
499+
$4.65
999+
$4.52
SKU:
F4-10-EU
F4-10 Budget Single Thrust Ball Bearing 4x10x4.5mm
- Regular price
- $6.46 ex VAT
- Sale price
- $6.46
- Regular price
-
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and a housing washer and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly

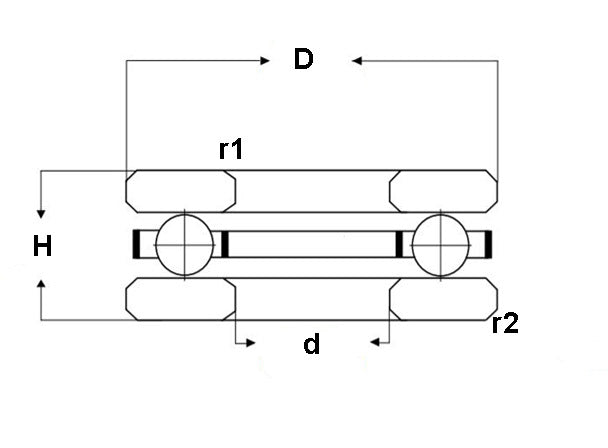

Technical
| d | = | 4mm (+/-0.008mm) |
| D | = | 10mm (+0/-0.011mm) |
| H | = | 4.5mm(+0/-0.075mm) |
| r1r2 min | = | 0.15mm |
| Dynamic load C | = | 0.35 kN |
| Static load Co | = | 0.25 kN |
| Weight | = | 0.002 kg |
| Limiting Speed | = | 21000 rpm |
| Lubrication | = | Light Oil AF2 |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
