SKU: F180H-MB
Major Branded F180H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 125mm / 5 inch
- Regular price
- $480.08 ex VAT
- Sale price
- $480.08
- Regular price
-
In stock
Quantity Price Breaks
10+
$427.27
19+
$403.27
29+
$398.47
39+
$393.67
49+
$388.86
74+
$384.06
99+
$360.06
199+
$355.26
249+
$350.46
499+
$345.66
999+
$336.06
SKU:
F180H-MB
Major Branded F180H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 125mm / 5 inch
- Regular price
- $480.08 ex VAT
- Sale price
- $480.08
- Regular price
-
Description
Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

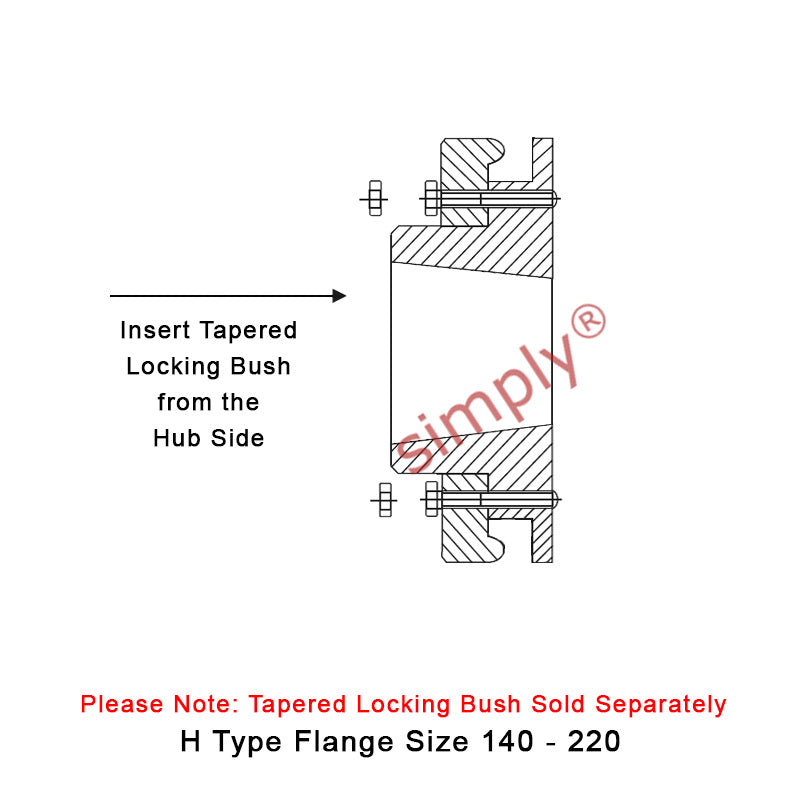

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Technical
| H Type - Bush | = | 4535 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+4535" |
| > | = | [Click Here]< |
| /a> | = | |
| H Type - Max Bore | = | 125mm |
| H Type - Max Bore | = | 5 inch |
| H Type - Flange A | = | 470mm |
| H Type - Flange B | = | 205mm |
| H Type - Flange C | = | 398mm |
| H Type - Flange E | = | 23mm |
| H Type - Flange G | = | 89mm |
| H Type - Flange F | = | 112mm |
| H Type - Flange D | = | 89mm |
| H Type - Flange Weight | = | 42.2kg |
| H Type - Inertia | = | 0.847kgm2 |
| H Type - Flange Face Spacing | = | 46mm |
| H Type - Gap Between Tyre Ends | = | 6mm |
| H Type - Nominal Torque | = | 6270 Nm |
| H Type - Max Speed | = | 1500 rev/min |
| H Type - Max Par Mis | = | 4.8mm |
| H Type - Max End Float | = | 6mm |
| H Type - Screw Size | = | M16 |
| H Type - Tigtening Torque | = | 105 Nm |
| Max Power at 100 rpm | = | 65.7 kW |
| Max Power at 200 rpm | = | 131 kW |
| Max Power at 300 rpm | = | 197 kW |
| Max Power at 400 rpm | = | 263 kW |
| Max Power at 500 rpm | = | 328 kW |
| Max Power at 600 rpm | = | 394 kW |
| Max Power at 700 rpm | = | 460 kW |
| Max Power at 720 rpm | = | 473 kW |
| Max Power at 800 rpm | = | 525 kW |
| Max Power at 900 rpm | = | 591 kW |
| Max Power at 960 rpm | = | 630 kW |
| Max Power at 1000 rpm | = | 657 kW |
| Max Power at 1200 rpm | = | 788 kW |
| Max Power at 1400 rpm | = | 919 kW |
| Max Power at 1440 rpm | = | 945 kW |
| Maximum Speed | = | 1500 rev/min |
| Nominal Torque | = | 6270 Nm TKN |
| Maximum Torque | = | 16455 Nm TK MAX |
| Torsional Stiffness | = | 1371 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 4.8mm |
| Maximum End Float | = | 6mm & |
| plusmn | = | |
| Approximate Mass | = | 7.7kg |
| Alternating Torque | = | 2742 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
