SKU: F180B-MB
Major Branded F180B-MB Drive Coupling Pilot Bore Max Bore 150mm
- Regular price
- $460.07 ex VAT
- Sale price
- $460.07
- Regular price
-
In stock
Quantity Price Breaks
10+
$409.46
19+
$386.46
29+
$381.86
39+
$377.26
49+
$372.66
74+
$368.06
99+
$345.05
199+
$340.45
249+
$335.85
499+
$331.25
999+
$322.05
SKU:
F180B-MB
Major Branded F180B-MB Drive Coupling Pilot Bore Max Bore 150mm
- Regular price
- $460.07 ex VAT
- Sale price
- $460.07
- Regular price
-
Description
Branded Drive Coupling Pilot Bore: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

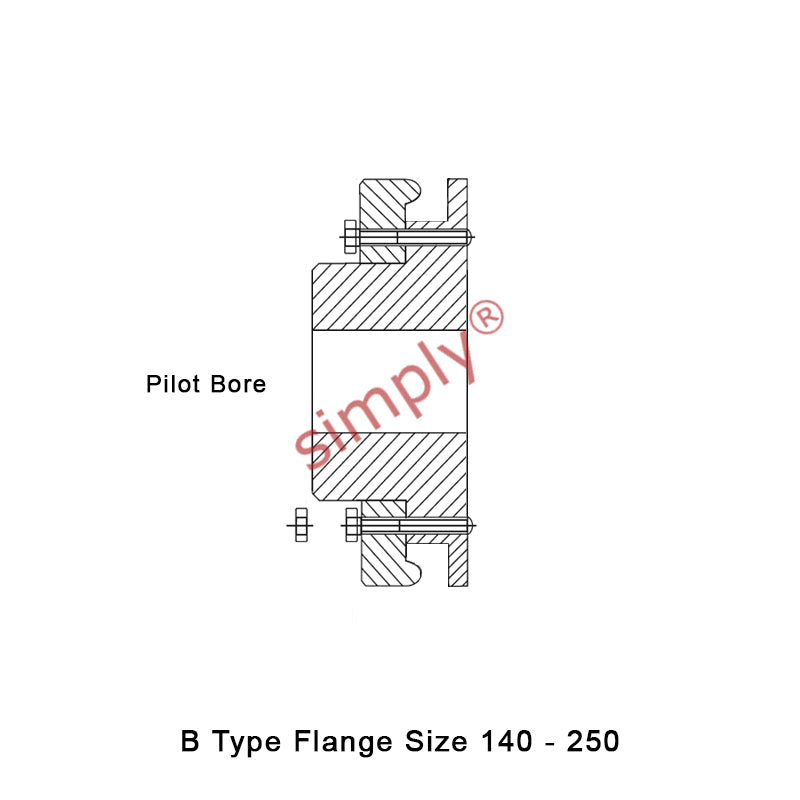

This coupling is the B type is supplied with a nominally sized pilot bore flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.

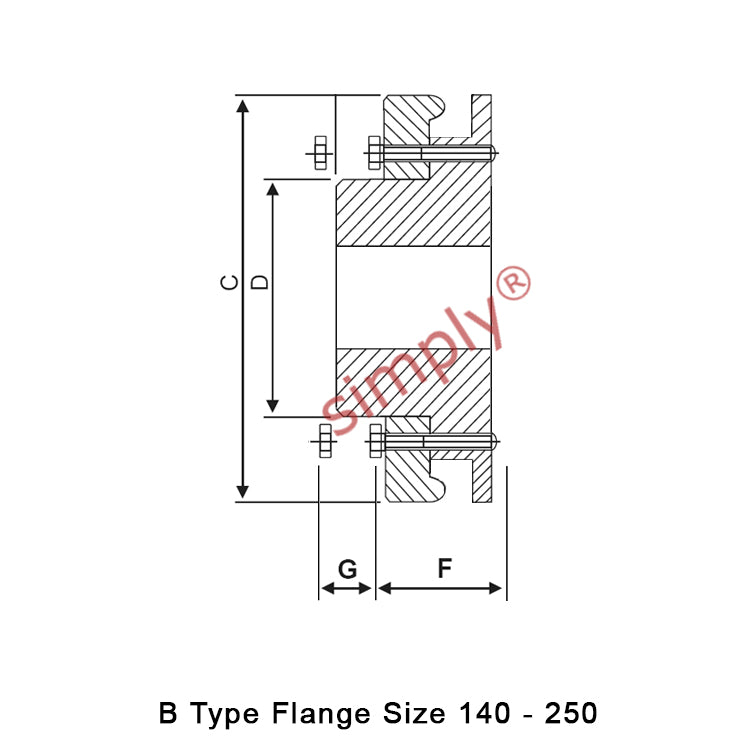

Technical
| B Type - Max Bore | = | 150mm |
| B Type - Flange A | = | 470mm |
| B Type - Flange B | = | 114mm |
| B Type - Flange C | = | 398mm |
| B Type - Flange E | = | 23mm |
| B Type - Flange F | = | 137mm |
| B Type - Flange D | = | 200mm |
| B Type - Clamping Screws | = | M20 |
| B Type - Flange Weight | = | 62.2kg |
| B Type - Inertia | = | 0.871kgm2 |
| B Type - Flange Face Spacing | = | 46mm |
| B Type - Gap Between Tyre Ends | = | 6mm |
| B Type - Nominal Torque | = | 6270 Nm |
| B Type - Max Speed | = | 1500 rev/min |
| B Type - Max Par Mis | = | 4.8mm |
| B Type - Max End Float | = | 6mm |
| B Type - Screw Size | = | M16 |
| B Type - Tigtening Torque | = | 105 Nm |
| Max Power at 100 rpm | = | 65.7 kW |
| Max Power at 200 rpm | = | 131 kW |
| Max Power at 300 rpm | = | 197 kW |
| Max Power at 400 rpm | = | 263 kW |
| Max Power at 500 rpm | = | 328 kW |
| Max Power at 600 rpm | = | 394 kW |
| Max Power at 700 rpm | = | 460 kW |
| Max Power at 720 rpm | = | 473 kW |
| Max Power at 800 rpm | = | 525 kW |
| Max Power at 900 rpm | = | 591 kW |
| Max Power at 960 rpm | = | 630 kW |
| Max Power at 1000 rpm | = | 657 kW |
| Max Power at 1200 rpm | = | 788 kW |
| Max Power at 1400 rpm | = | 919 kW |
| Max Power at 1440 rpm | = | 945 kW |
| Maximum Speed | = | 1500 rev/min |
| Nominal Torque | = | 6270 Nm TKN |
| Maximum Torque | = | 16455 Nm TK MAX |
| Torsional Stiffness | = | 1371 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 4.8mm |
| Maximum End Float | = | 6mm & |
| plusmn | = | |
| Approximate Mass | = | 7.7kg |
| Alternating Torque | = | 2742 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
