SKU: F160H-MB
Major Branded F160H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 115mm / 4-1/2 inch
- Regular price
- $448.87 ex VAT
- Sale price
- $448.87
- Regular price
-
In stock
Quantity Price Breaks
10+
$399.49
19+
$377.05
29+
$372.56
39+
$368.07
49+
$363.58
74+
$359.10
99+
$336.65
199+
$332.16
249+
$327.68
499+
$323.19
999+
$314.21
SKU:
F160H-MB
Major Branded F160H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 115mm / 4-1/2 inch
- Regular price
- $448.87 ex VAT
- Sale price
- $448.87
- Regular price
-
Description
Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

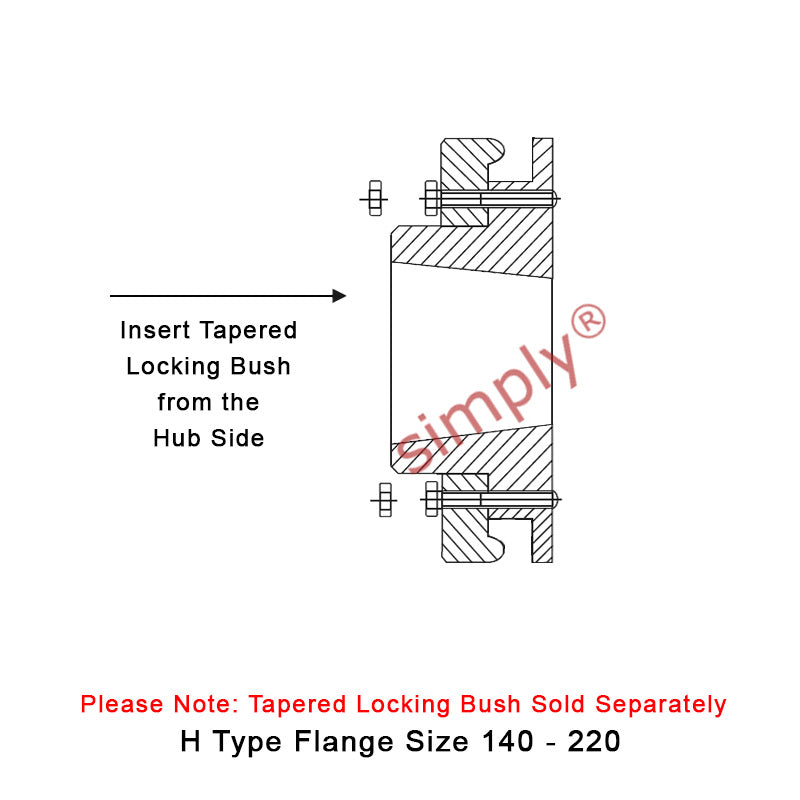

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
Technical
| H Type - Bush | = | 4030 < |
| a href=" | = | advanced_search_result.php?keywords=taper+lock+bush+4030" |
| > | = | [Click Here]< |
| /a> | = | |
| H Type - Max Bore | = | 115mm |
| H Type - Max Bore | = | 4-1/2 inch |

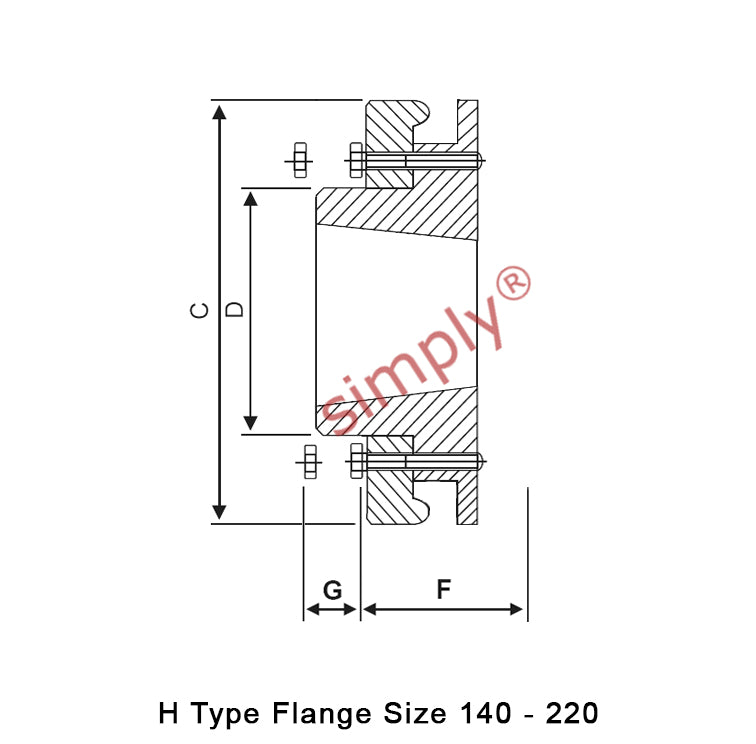

| H Type - Flange A | = | 402mm |
| H Type - Flange B | = | 197mm |
| H Type - Flange C | = | 345mm |
| H Type - Flange E | = | 15mm |
| H Type - Flange G | = | 80mm |
| H Type - Flange F | = | 92mm |
| H Type - Flange D | = | 77mm |
| H Type - Flange Weight | = | 31.5kg |
| H Type - Inertia | = | 0.38kgm2 |
| H Type - Flange Face Spacing | = | 30mm |
| H Type - Gap Between Tyre Ends | = | 5mm |
| H Type - Nominal Torque | = | 3770 Nm |
| H Type - Max Speed | = | 1600 rev/min |
| H Type - Max Par Mis | = | 4.2mm |
| H Type - Max End Float | = | 5.3mm |
| H Type - Screw Size | = | M16 |
| H Type - Tigtening Torque | = | 80 Nm |
| Max Power at 100 rpm | = | 39.5 kW |
| Max Power at 200 rpm | = | 79 kW |
| Max Power at 300 rpm | = | 118 kW |
| Max Power at 400 rpm | = | 158 kW |
| Max Power at 500 rpm | = | 197 kW |
| Max Power at 600 rpm | = | 237 kW |
| Max Power at 700 rpm | = | 276 kW |
| Max Power at 720 rpm | = | 284 kW |
| Max Power at 800 rpm | = | 316 kW |
| Max Power at 900 rpm | = | 355 kW |
| Max Power at 960 rpm | = | 379 kW |
| Max Power at 1000 rpm | = | 395 kW |
| Max Power at 1200 rpm | = | 474 kW |
| Max Power at 1400 rpm | = | 553 kW |
| Max Power at 1440 rpm | = | 568 kW |
| Max Power at 1600 rpm | = | 632 kW |
| Maximum Speed | = | 1600 rev/min |
| Nominal Torque | = | 3770 Nm TKN |
| Maximum Torque | = | 9339 Nm TK MAX |
| Torsional Stiffness | = | 778 Nm/& |
| deg | = | |
| Max. Parallel Misalignment | = | 4.2mm |
| Maximum End Float | = | 5.3mm & |
| plusmn | = | |
| Approximate Mass | = | 3.4kg |
| Alternating Torque | = | 1556 & |
| plusmn | = | Nm @ 10Hz TKW |
| Resonance Factor V B | = | 7 |
| Damping Coefficient & | = | Oslash |
| = | 0.9 |
