SKU: F10-18G-EZO

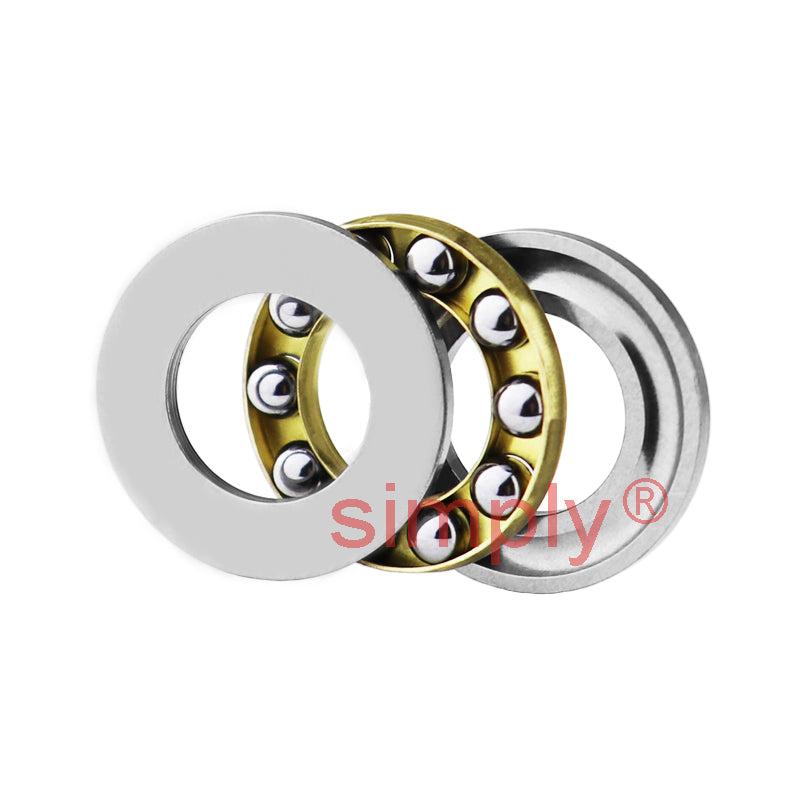

EZO F10-18G Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- $12.92 ex VAT
- Sale price
- $12.92
- Regular price
-
In stock
Quantity Price Breaks
10+
$11.50
19+
$10.85
29+
$10.72
39+
$10.59
49+
$10.47
74+
$10.34
99+
$9.69
199+
$9.56
249+
$9.43
499+
$9.30
999+
$9.04
SKU:
F10-18G-EZO
EZO F10-18G Single Thrust Ball Bearing 10x18x5.5mm
- Regular price
- $12.92 ex VAT
- Sale price
- $12.92
- Regular price
-
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
Technical
| d | = | 10mm (+0/-0.05mm) |
| D | = | 18mm (+0.005/-0.020mm) |
| H | = | 5.5mm (+0/-0.075mm) |
| d1 | = | 10.2mm (+0/-0.011mm) |
| D1 | = | 17.8mm (+0/-0.008mm) |
| r1r2 min | = | 0.3mm |
| Dynamic load C | = | 2.422 kN |
| Static load Co | = | 3.423 kN |
| Limiting speed | = | 14000 rpm |
| Weight | = | 0.006 kg |
| Material | = | Balls & |
| Washers, Chrome Steel, Brass or 304 Stainless Steel Cage | = | N/A |
