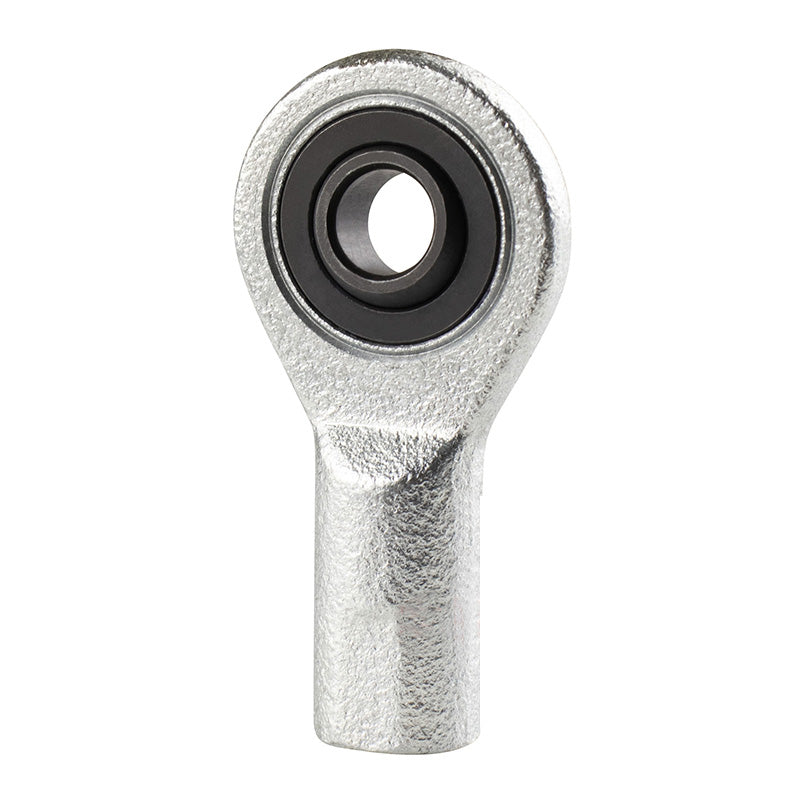

Durbal EFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread

SKU: EFN06-20-501-DURB

Durbal EFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread

$36.53 ex VAT
$36.53
ex VAT
Equivalent to: GIR6DO SI6ES
In stock

Quantity Price Breaks

10+ $32.51
19+ $30.69
29+ $30.32
39+ $29.95
49+ $29.59
74+ $29.22
99+ $27.40
199+ $27.03
249+ $26.67
499+ $26.30
999+ $25.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Durbal EFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread
SKU: EFN06-20-501-DURB

Durbal EFN06-20-501 Maintenance Required Right Hand Metric Steel Female Rod End M6 Thread

$36.53 ex VAT
$36.53
ex VAT

Description

DURBAL Heavy-Duty Maintenance Required Female Rod Ends with Pressed Spherical-Plain Bearing: Threaded female rod end consisting of a galvanised, tempered, forged steel housing with a steel, hardened, ground, phospated outer ring with oil groove and drill holes and a steel joint ball (Outer ring has a single split from size 15). Primary application in situations of alternating stresses or impact loads and preferred in situations of large swivelling movements. Made of forged steel, tempered, extremely high loads resistant and protected against corrosion by galvanisation. Rod ends from size 15 can be greased subsequently by means of a funnel-type lubrication nipple, and from size 20 by means of a conical grease nipple. Connection dimensions in accordance with DIN ISO 8139 for pneumatic cylinders. Temperature range: -40 deg C to +200 deg C.


Note: In this particular rod end series, any size under 15mm will not have a grease nipple and will need greasing manually
