SKU: CNBH-160-SB

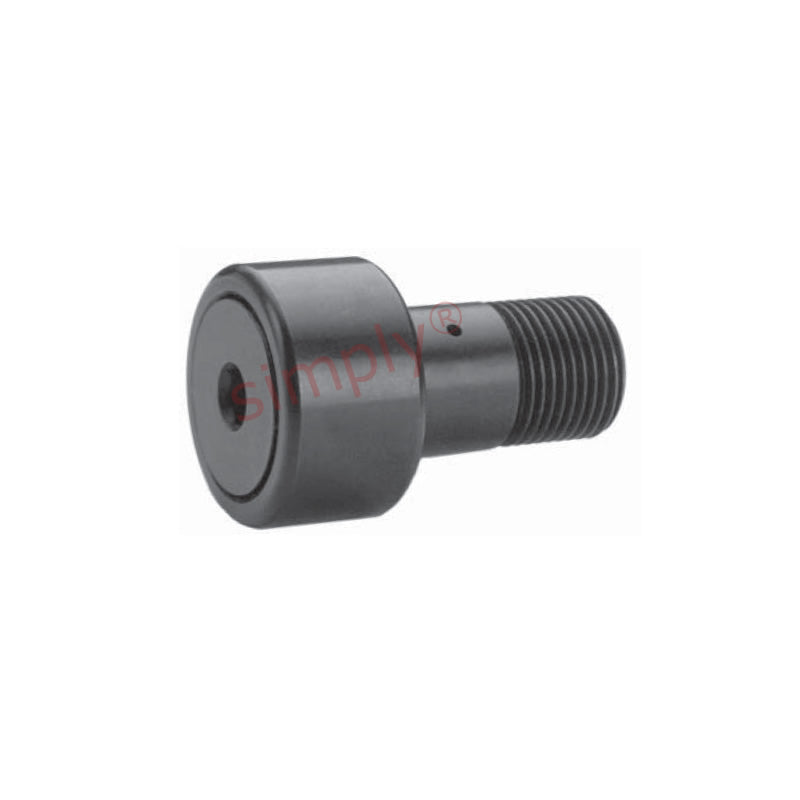

Major Brand CNBH160SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 5 inch Outside Diameter
- Regular price
- $2,092.40 ex VAT
- Sale price
- $2,092.40
- Regular price
-
Not in stock
Quantity Price Breaks
3
$1,862.24
4
$1,757.62
9
$1,736.69
19
$1,715.77
29
$1,694.84
39
$1,673.92
49
$1,569.30
59
$1,548.38
249
$1,527.45
499
$1,506.53
999
$1,464.68
SKU:
CNBH-160-SB
Major Brand CNBH160SB Heavy Duty Hex Head Sealed Cylindrical Cam Follower 5 inch Outside Diameter
- Regular price
- $2,092.40 ex VAT
- Sale price
- $2,092.40
- Regular price
-
Description
|
Heavy Duty Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 5 inch |
| B | = | 2.75 inch |
| C | = | 2.5 inch |
| D | = | 5.062 inch |
| E | = | 2.562 inch |
| Thread class 2A F | = | 2-1/2-12 UN |
| G | = | 7/8 inch |
| H | = | 3/16 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 3-9/16 inch |
| Recommended bore | = | 2.5 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 135900 lbs |
| Basic dynamic rating | = | 46575 lbs |
