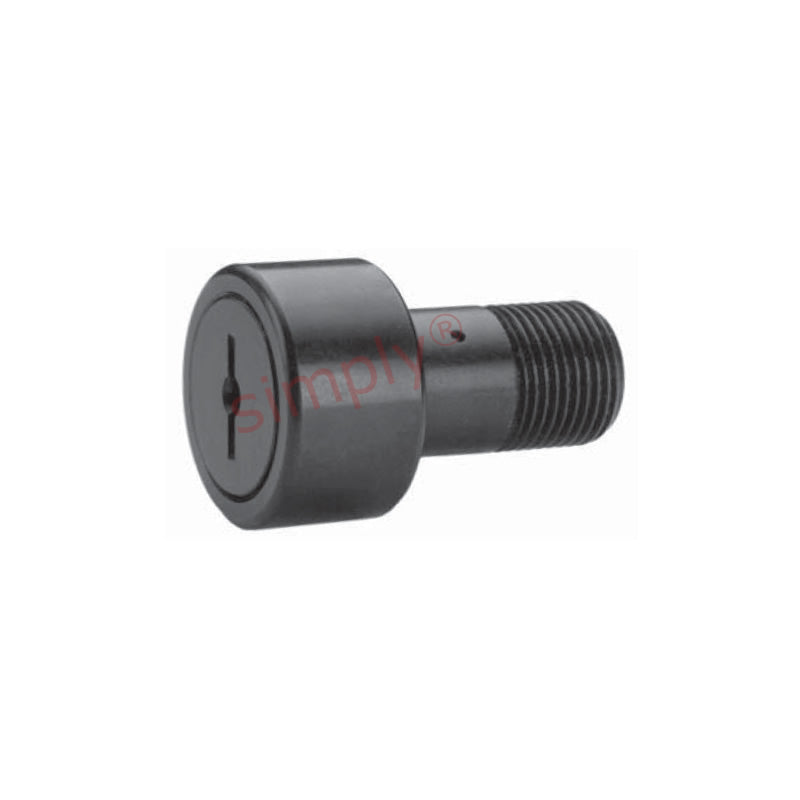

Major Brand CNBH104S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days

SKU: CNBH-104-S

Major Brand CNBH104S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days

$321.18 ex VAT
$321.18
ex VAT
Equivalent to: CFH-3-1/4-S H-104-L HR-3-1/4-X CRSH-52
Not in stock

Quantity Price Breaks

3 $285.85
4 $269.79
9 $266.58
19 $263.37
29 $260.16
39 $256.94
49 $240.89
59 $237.67
249 $234.46
499 $231.25
999 $224.83
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand CNBH104S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days
SKU: CNBH-104-S

Major Brand CNBH104S Heavy Duty Sealed and Slotted Cylindrical Cam Follower 3-1/4 inch Outside Diameter Allow 7-10 Days

$321.18 ex VAT
$321.18
ex VAT

Description

Heavy Duty Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F.
Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication.

Technical

A = 3.25 inch
B = 1.75 inch
C = 1.5 inch
D = 2.5 inch
E = 1.25 inch
Thread class 2A F = 1-1/2-12 UNF
G = 5/8 inch
H = 1/8 inch
J = 1/4 inch
Min boss diameter = 1-3/4 inch
Recommended bore = 1.5 inch
Recommended torque = 5000 lbf-in
Max static capacity = 49820 lbs
Basic dynamic rating = 15720 lbs
