SKU: CNB-88-SB

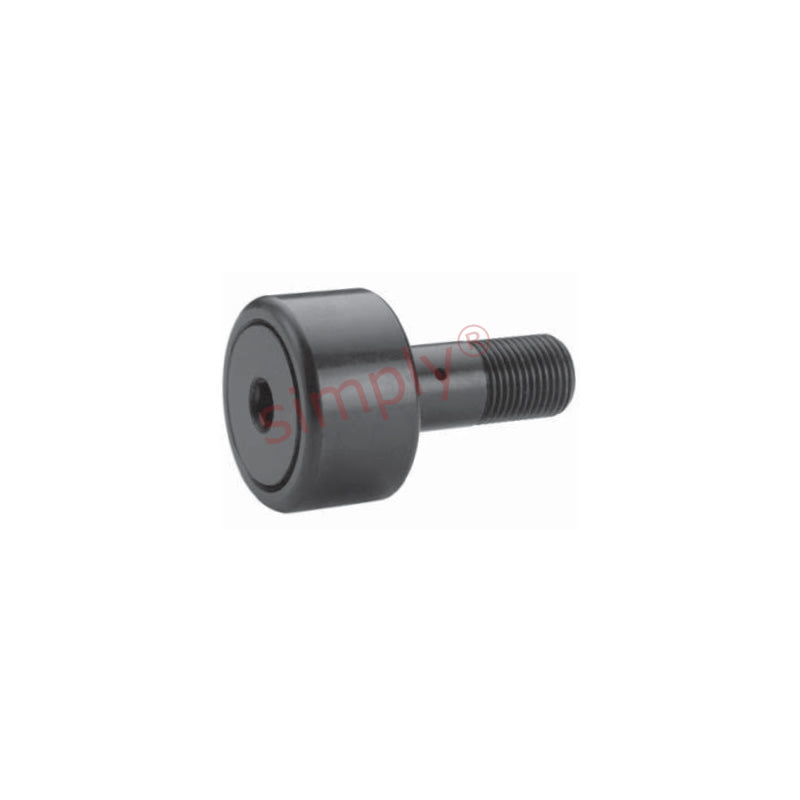

Major Brand CNB88SB Hex Head Sealed Cylindrical Cam Follower 2-3/4 inch Outside Diameter
- Regular price
- $241.95 ex VAT
- Sale price
- $241.95
- Regular price
-
Not in stock
Quantity Price Breaks
3
$215.34
4
$203.24
9
$200.82
19
$198.40
29
$195.98
39
$193.56
49
$181.46
59
$179.04
249
$176.62
499
$174.20
999
$169.37
SKU:
CNB-88-SB
Major Brand CNB88SB Hex Head Sealed Cylindrical Cam Follower 2-3/4 inch Outside Diameter
- Regular price
- $241.95 ex VAT
- Sale price
- $241.95
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 2.75 inch |
| B | = | 1.5 inch |
| C | = | 1 inch |
| D | = | 2.25 inch |
| E | = | 1.125 inch |
| Thread class 2A F | = | 1-14 UNS |
| G | = | 9/16 inch |
| H | = | 1/8 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1-5/16 inch |
| Recommended bore | = | 1 inch |
| Recommended torque | = | 2250 lbf-in |
| Max static capacity | = | 16450 lbs |
| Basic dynamic rating | = | 11720 lbs |
