SKU: CNB-52-S

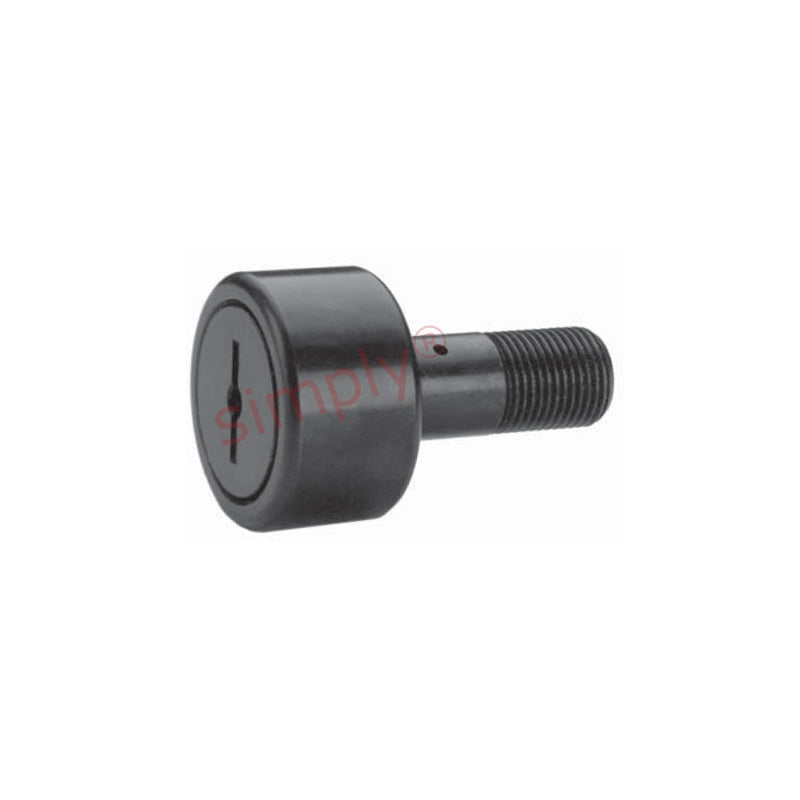

Major Brand CNB52S Sealed and Slotted Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $64.91 ex VAT
- Sale price
- $64.91
- Regular price
-
Not in stock
Quantity Price Breaks
3
$57.77
4
$54.52
9
$53.88
19
$53.23
29
$52.58
39
$51.93
49
$48.68
59
$48.03
249
$47.38
499
$46.74
999
$45.44
SKU:
CNB-52-S
Major Brand CNB52S Sealed and Slotted Cylindrical Cam Follower 1-5/8 inch Outside Diameter Allow 7-10 Days
- Regular price
- $64.91 ex VAT
- Sale price
- $64.91
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 1.625 inch |
| B | = | 0.875 inch |
| C | = | 0.625 inch |
| D | = | 1.5 inch |
| E | = | 0.75 inch |
| Thread class 2A F | = | 5/8-18 UNF |
| G | = | 3/8 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 57/64 inch |
| Recommended bore | = | 0.625 inch |
| Recommended torque | = | 650 lbf-in |
| Max static capacity | = | 5640 lbs |
| Basic dynamic rating | = | 4840 lbs |
