SKU: CNB-28-S

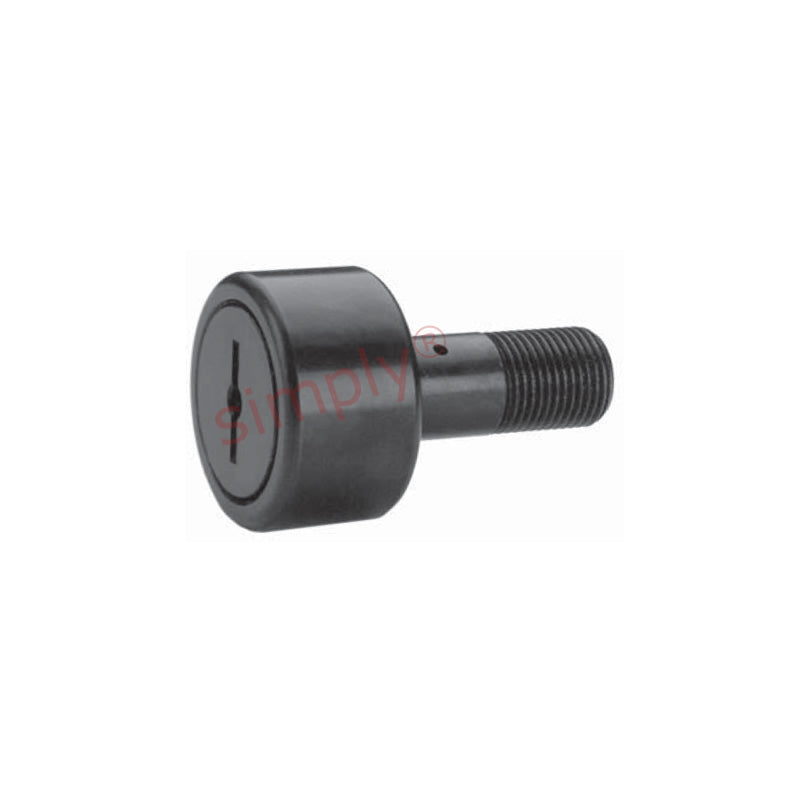

Major Brand CNB28S Sealed and Slotted Cylindrical Cam Follower 7/8 inch Outside Diameter
- Regular price
- $37.75 ex VAT
- Sale price
- $37.75
- Regular price
-
Not in stock
Quantity Price Breaks
3
$33.60
4
$31.71
9
$31.33
19
$30.96
29
$30.58
39
$30.20
49
$28.31
59
$27.94
249
$27.56
499
$27.18
999
$26.43
SKU:
CNB-28-S
Major Brand CNB28S Sealed and Slotted Cylindrical Cam Follower 7/8 inch Outside Diameter
- Regular price
- $37.75 ex VAT
- Sale price
- $37.75
- Regular price
-
Description
|
Sealed Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication. |
Technical
| A | = | 0.875 inch |
| B | = | 0.5 inch |
| C | = | 0.375 inch |
| D | = | 0.875 inch |
| E | = | 0.375 inch |
| Thread class 2A F | = | 3/8-24 UNF |
| G | = | 1/4 inch |
| H | = | 3/32 inch |
| J | = | 3/16 inch |
| Min boss diameter | = | 1/2 inch |
| Recommended bore | = | 0.375 inch |
| Recommended torque | = | 95 lbf-in |
| Max static capacity | = | 2065 lbs |
| Basic dynamic rating | = | 1660 lbs |
