SKU: CNB-22
Major Brand CNB22 Slotted Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- $41.18 ex VAT
- Sale price
- $41.18
- Regular price
-
Not in stock
Quantity Price Breaks
3
$36.65
4
$34.59
9
$34.18
19
$33.77
29
$33.36
39
$32.94
49
$30.89
59
$30.47
249
$30.06
499
$29.65
999
$28.83
SKU:
CNB-22
Major Brand CNB22 Slotted Cylindrical Cam Follower 11/16 inch Outside Diameter Allow 7-10 Days
- Regular price
- $41.18 ex VAT
- Sale price
- $41.18
- Regular price
-
Description
|
Cam Follower with Slotted Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock. |

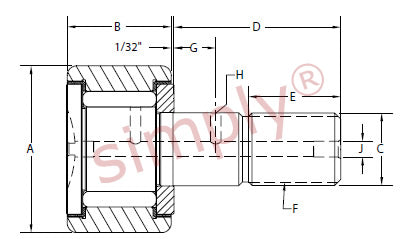

Technical
| A | = | 0.6875 inch |
| B | = | 0.4375 inch |
| C | = | 0.25 inch |
| D | = | 0.75 inch |
| E | = | 0.312 inch |
| Thread class 2A F | = | 1/4-28 UNF |
| J | = | 1/8 inch |
| Min boss diameter | = | 23/64 inch |
| Recommended bore | = | 0.25 inch |
| Recommended torque | = | 35 lbf-in |
| Max static capacity | = | 1215 lbs |
| Basic dynamic rating | = | 955 lbs |
