SKU: CNB-192-SB

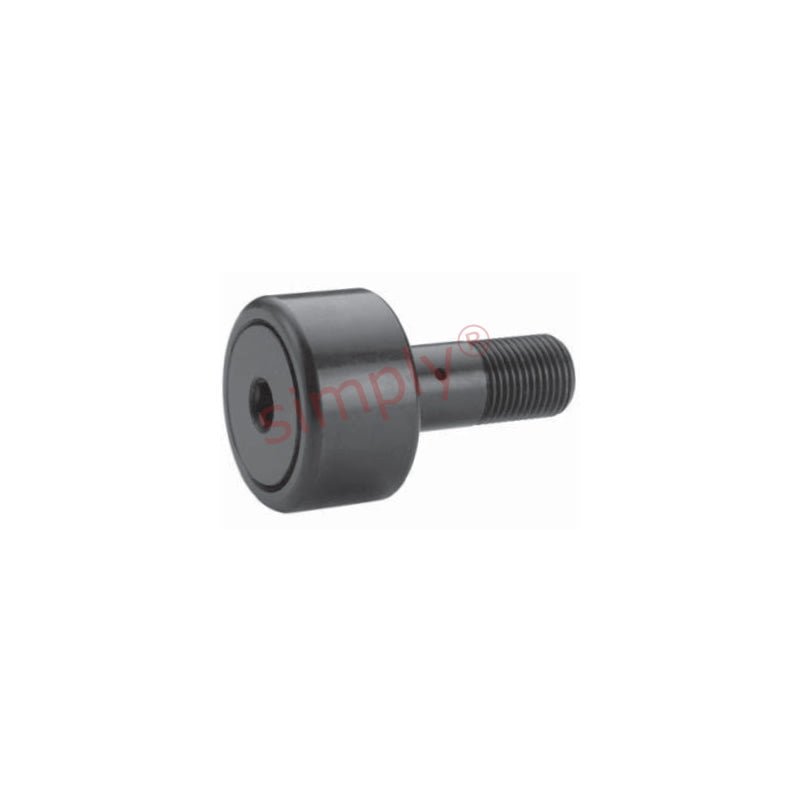

Major Brand CNB192SB Hex Head Sealed Cylindrical Cam Follower 6 inch Outside Diameter
- Regular price
- $2,490.41 ex VAT
- Sale price
- $2,490.41
- Regular price
-
Not in stock
Quantity Price Breaks
3
$2,216.46
4
$2,091.94
9
$2,067.04
19
$2,042.14
29
$2,017.23
39
$1,992.33
49
$1,867.81
59
$1,842.90
249
$1,818.00
499
$1,793.10
999
$1,743.29
SKU:
CNB-192-SB
Major Brand CNB192SB Hex Head Sealed Cylindrical Cam Follower 6 inch Outside Diameter
- Regular price
- $2,490.41 ex VAT
- Sale price
- $2,490.41
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 6 inch |
| B | = | 3.25 inch |
| C | = | 2.5 inch |
| D | = | 6 inch |
| E | = | 3 inch |
| Thread class 2A F | = | 2-1/2-12 UN |
| G | = | 1 inch |
| H | = | 3/16 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 3-3/8 inch |
| Recommended bore | = | 2.5 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 80450 lbs |
| Basic dynamic rating | = | 60000 lbs |
