SKU: CNB-160-SB

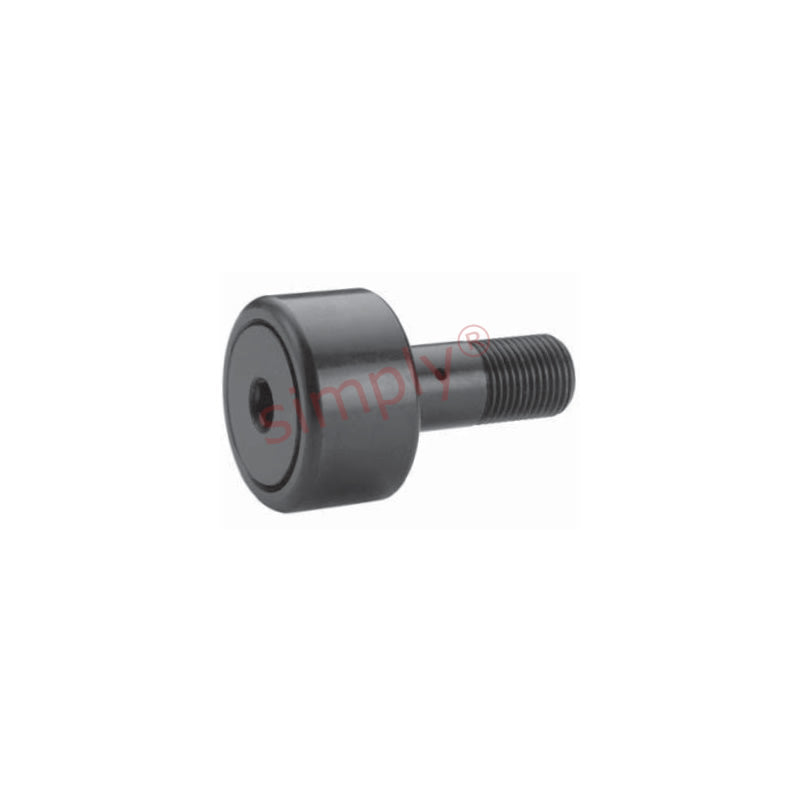

Major Brand CNB160SB Hex Head Sealed Cylindrical Cam Follower 5 inch Outside Diameter
- Regular price
- $1,688.82 ex VAT
- Sale price
- $1,688.82
- Regular price
-
Not in stock
Quantity Price Breaks
3
$1,503.05
4
$1,418.61
9
$1,401.72
19
$1,384.83
29
$1,367.94
39
$1,351.06
49
$1,266.62
59
$1,249.73
249
$1,232.84
499
$1,215.95
999
$1,182.17
SKU:
CNB-160-SB
Major Brand CNB160SB Hex Head Sealed Cylindrical Cam Follower 5 inch Outside Diameter
- Regular price
- $1,688.82 ex VAT
- Sale price
- $1,688.82
- Regular price
-
Description
|
Sealed Cam Follower with Hex Head: The outer race of this cam follower is high carbon chrome bearing steel through-hardened and ground. The studs and inner races are low carbon alloy steel carburized and induction hardened. This bearing contains a polymer type, lithium based grease containing corrosion resistant additives. This lubricant is suited to most bearing applications within a temperature range of 0 deg F to 250 deg F. Benefits: Suitable for many cam or track roller applications with moderate loading and shock, sealed to help prevent contamination and retain lubrication, provides ease of installing with a hex wrench. |
Technical
| A | = | 5 inch |
| B | = | 2.75 inch |
| C | = | 2 inch |
| D | = | 5.062 inch |
| E | = | 2.562 inch |
| Thread class 2A F | = | 2-12 UN |
| G | = | 7/8 inch |
| H | = | 3/16 inch |
| J | = | 1/4 inch |
| Min boss diameter | = | 2-7/8 inch |
| Recommended bore | = | 2 inch |
| Recommended torque | = | 5000 lbf-in |
| Max static capacity | = | 67950 lbs |
| Basic dynamic rating | = | 46575 lbs |
