SKU: CES210-30-SNR

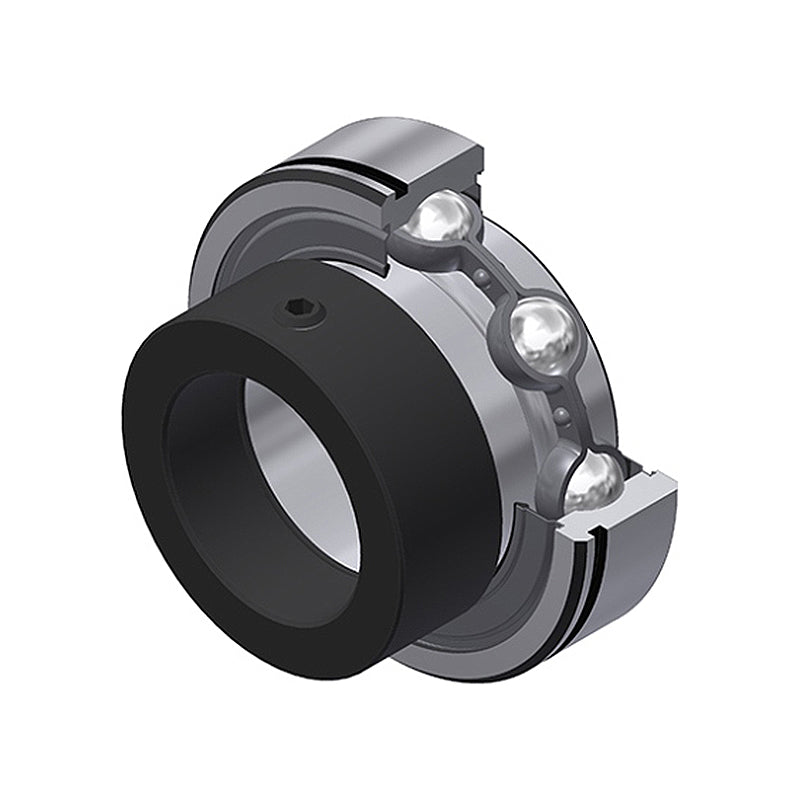

SNR CES210-30 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-7/8 inch Bore 90mm Outside Diameter with Eccentric Collar
- Regular price
- $41.93 ex VAT
- Sale price
- $41.93
- Regular price
-
In stock
Quantity Price Breaks
10+
$37.32
19+
$35.22
29+
$34.80
39+
$34.38
49+
$33.96
74+
$33.54
99+
$31.45
199+
$31.03
249+
$30.61
499+
$30.19
999+
$29.35
SKU:
CES210-30-SNR
SNR CES210-30 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-7/8 inch Bore 90mm Outside Diameter with Eccentric Collar
- Regular price
- $41.93 ex VAT
- Sale price
- $41.93
- Regular price
-
Description
IG953VLNXP
Technical
| d | = | 1-7/8 inch |
| d | = | 47.625mm |
| D | = | 90mm |
| C | = | 20mm |
| B | = | 30.2mm |
| B1 | = | 43.7mm |
| B2 | = | 18.3mm |
| d1 | = | 69.9mm |
| S | = | 10mm |
| a | = | 3.7mm |
| b | = | 2.7mm |
| N1 | = | 86.79mm |
| m | = | 6.5mm |
| r min | = | 1.5mm |
| G | = | 5/16-24UNF |
| Wrench Size | = | 5/32 inch |
| Set screw torque | = | 8 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 35.1kN |
| Static load rating C0 | = | 23.2kN |
| Weight | = | 0.9kg |
