SKU: CES207-22-SNR

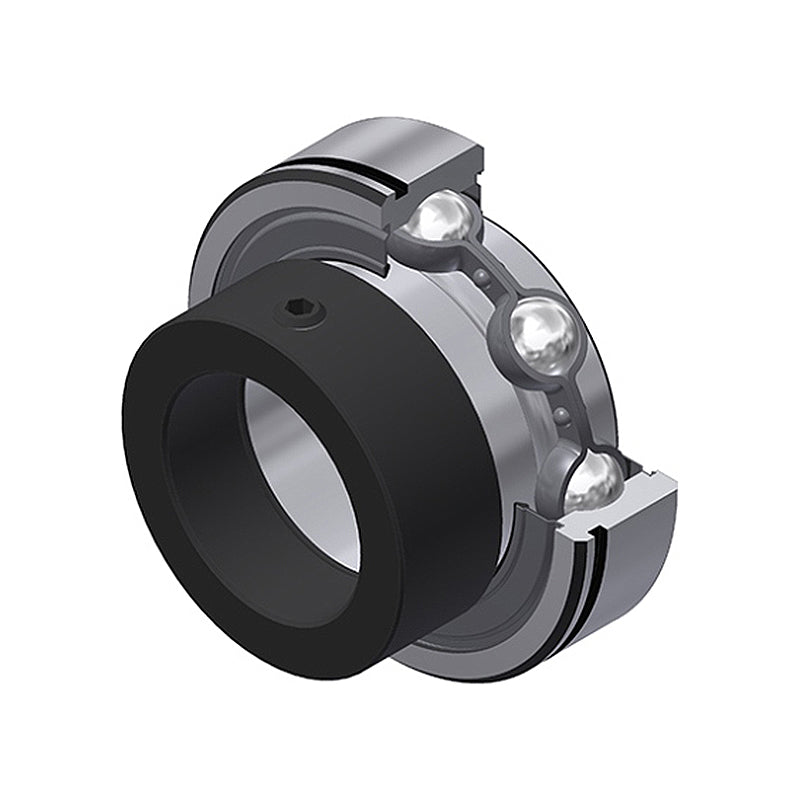

SNR CES207-22 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
- Regular price
- $30.45 ex VAT
- Sale price
- $30.45
- Regular price
-
In stock
Quantity Price Breaks
10+
$27.10
19+
$25.58
29+
$25.27
39+
$24.97
49+
$24.66
74+
$24.36
99+
$22.84
199+
$22.53
249+
$22.23
499+
$21.92
999+
$21.32
SKU:
CES207-22-SNR
SNR CES207-22 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-3/8 inch Bore 72mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
- Regular price
- $30.45 ex VAT
- Sale price
- $30.45
- Regular price
-
Description
IG953VLNXP
Technical
| d | = | 1-3/8 inch |
| d | = | 34.925mm |
| D | = | 72mm |
| C | = | 17mm |
| B | = | 25.4mm |
| B1 | = | 38.9mm |
| B2 | = | 17.5mm |
| d1 | = | 55.6mm |
| S | = | 8.5mm |
| a | = | 3.18mm |
| b | = | 1.9mm |
| N1 | = | 68.81mm |
| m | = | 6.5mm |
| r min | = | 1.5mm |
| G | = | 5/16-24UNF |
| Wrench Size | = | 5/32 inch |
| Set screw torque | = | 8 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 25.7kN |
| Static load rating C0 | = | 15.2kN |
| Weight | = | 0.5kg |
