SKU: CES204-12-SNR

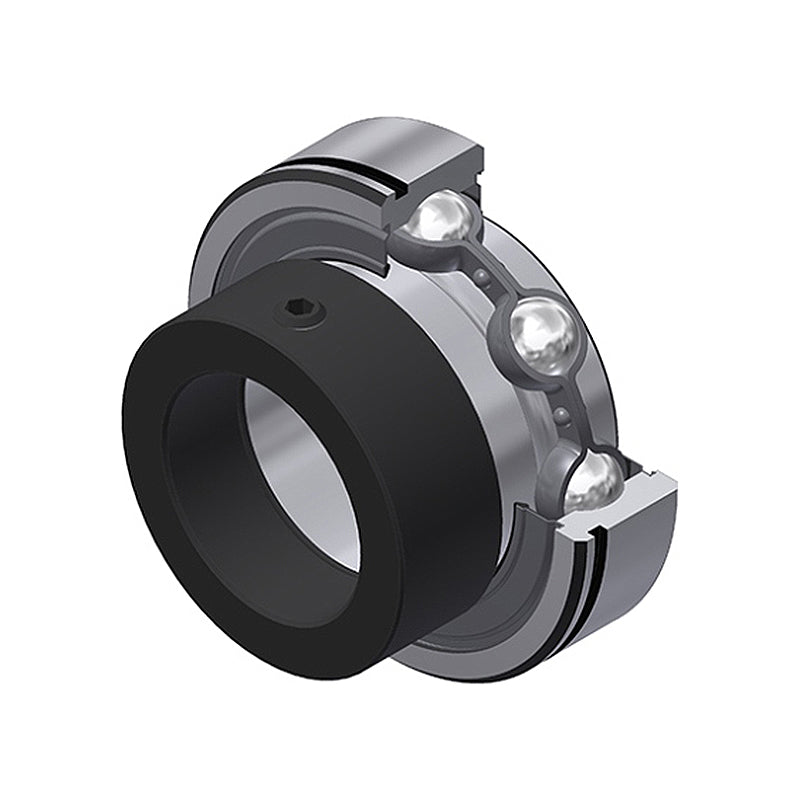

SNR CES204-12 Imperial Flatback Grooved Parallel Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
- Regular price
- $20.30 ex VAT
- Sale price
- $20.30
- Regular price
-
In stock
Quantity Price Breaks
10+
$18.07
19+
$17.05
29+
$16.85
39+
$16.65
49+
$16.44
74+
$16.24
99+
$15.23
199+
$15.02
249+
$14.82
499+
$14.62
999+
$14.21
SKU:
CES204-12-SNR
SNR CES204-12 Imperial Flatback Grooved Parallel Outer Bearing Insert 3/4 inch Bore 47mm Outside Diameter with Eccentric Collar - Allow 2-3 Days
- Regular price
- $20.30 ex VAT
- Sale price
- $20.30
- Regular price
-
Description
IG953VLNXP
Technical
| d | = | 3/4 inch |
| d | = | 19.05mm |
| D | = | 47mm |
| C | = | 14mm |
| B | = | 21.5mm |
| B1 | = | 31mm |
| B2 | = | 13.5mm |
| d1 | = | 33.3mm |
| S | = | 7mm |
| a | = | 4mm |
| b | = | 1.35mm |
| N1 | = | 44.6mm |
| m | = | 5mm |
| r min | = | 1mm |
| G | = | 1/4-28UNF |
| Wrench Size | = | 1/8 inch |
| Set screw torque | = | 3.7 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 12.8kN |
| Static load rating C0 | = | 6.7kN |
| Weight | = | 0.2kg |
