SKU: BK2526-MB

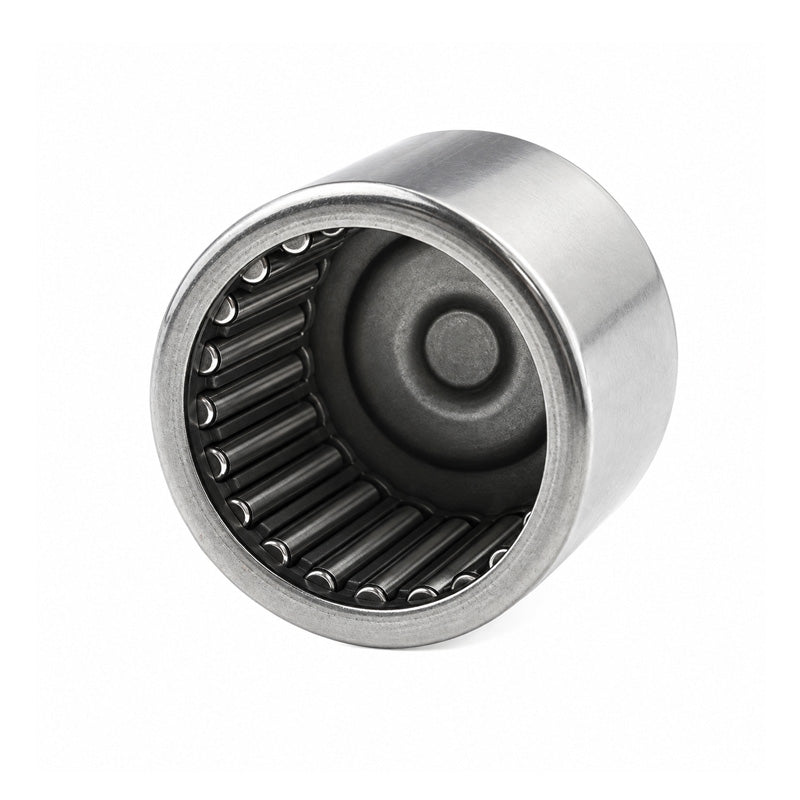

Major Brand BK2526 Drawn Cup Type Needle Roller Bearing with One Closed End 25x32x26mm
- Regular price
- $12.80 ex VAT
- Sale price
- $12.80
- Regular price
-
In stock
Quantity Price Breaks
10
$11.39
19
$10.75
29
$10.62
39
$10.50
49
$10.37
74
$10.24
99
$9.60
199
$9.47
249
$9.34
499
$9.22
999
$8.96
SKU:
BK2526-MB
Major Brand BK2526 Drawn Cup Type Needle Roller Bearing with One Closed End 25x32x26mm
- Regular price
- $12.80 ex VAT
- Sale price
- $12.80
- Regular price
-
Description
|
BK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with one open end. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS series are fitted with a nitrile rubber seal. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Technical
| Fw | = | 25mm |
| D | = | 32mm |
| C | = | 26mm |
| Dynamic load | = | 24200 N |
| Static load | = | 45000 N |
| Fatigue load limit Pu | = | 5500 N |
| Speed in grease | = | 7500 rpm |
| Speed in oil | = | 11000 rpm |
| C1 | = | 23.3mm |
| r1r2 min | = | 0.8mm |
| Da max | = | 27mm |
| ra max | = | 0.8mm |
| Inner ring | = | IR20x25x26.5 |
| Seal | = | G25x32x4 |
| Weight | = | 48 g |
